ImageFlow Hospital Imaging & Fluoroscopy Patient Stretcher

Product Information

• Description

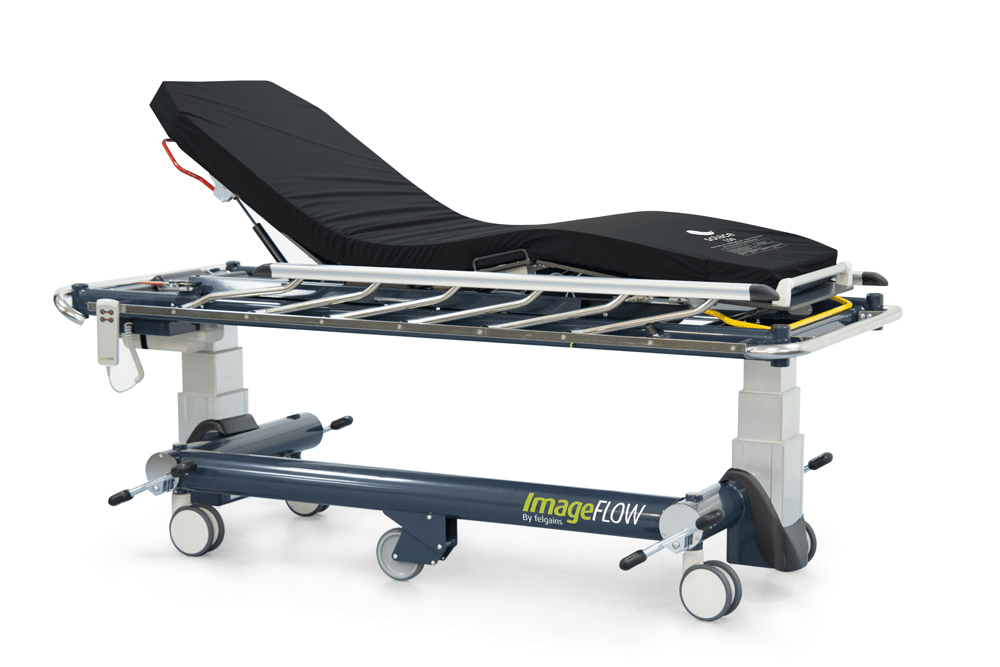

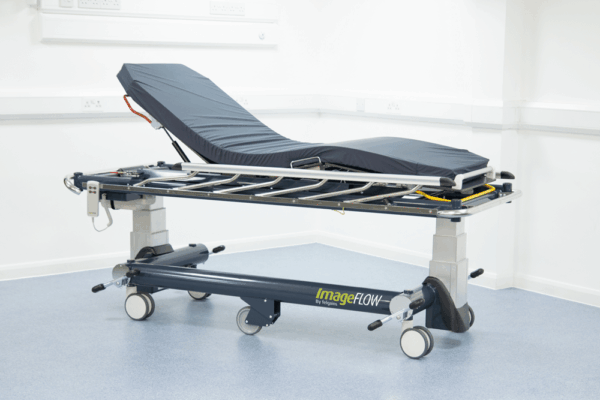

  The Felgains ImageFlow is a unique combination of a hospital imaging stretcher and imaging table for Endoscopy, Fluoroscopy and any task requiring the use of a C-arm.

  Streamlined patient transfer: one trolley for multiple tasks

  The ImageFlow suits multiple different tasks, including therapeutic Endoscopy, Fluoroscopy and any task requiring the use of a C-arm.  Whilst more well-built than a traditional stretcher, it can be used as a highly mobile device to transfer before and after procedures.

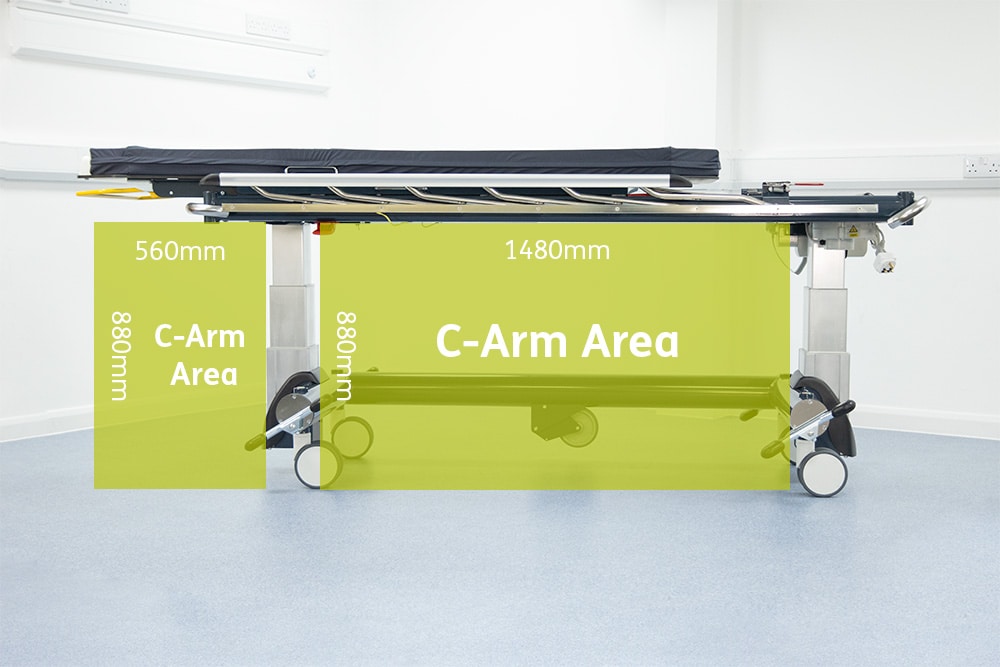

  Solve C-Arm challenges: sliding platform for maximum scanning flexibility

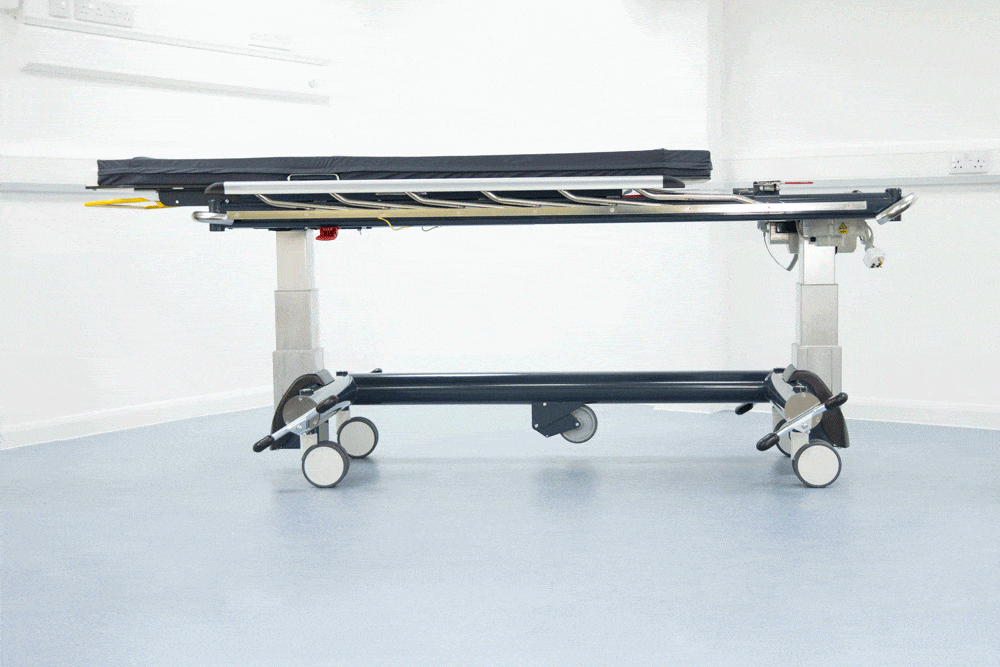

  Reduce the need for repositioning of heavy C-Arms by use of a sliding patient platform that allows a market leading 490mm of horizontal movement up and down – greatly reducing the need to move the patient, trolley base or C-Arm.

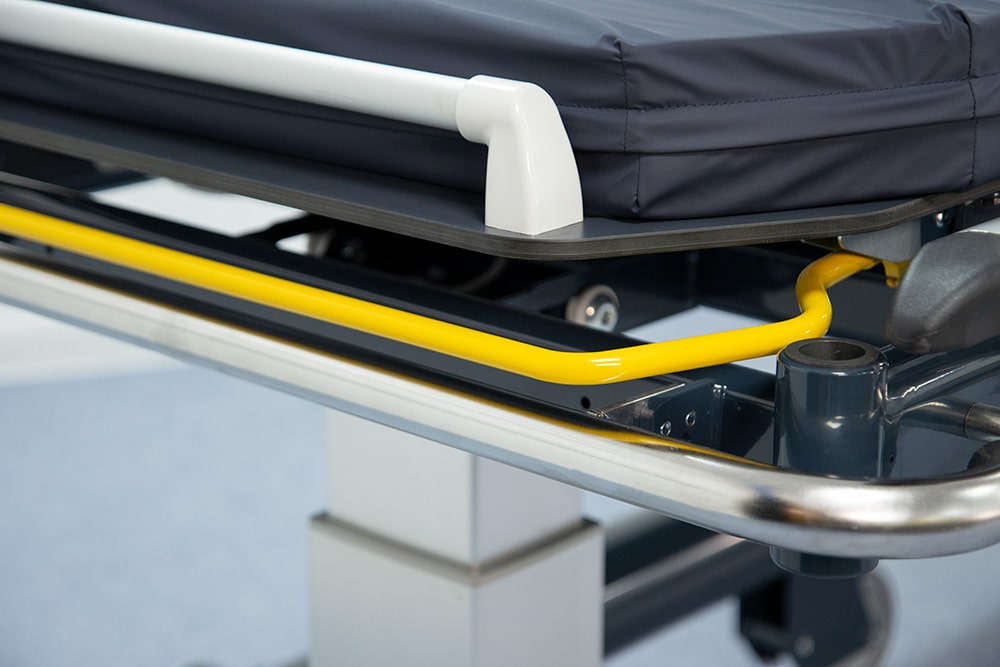

  The backrest and kneebrake are hydraulic for easy adjustment, and full-length fold-down siderails ensure patient safety whilst giving unimpeded access for the operators.

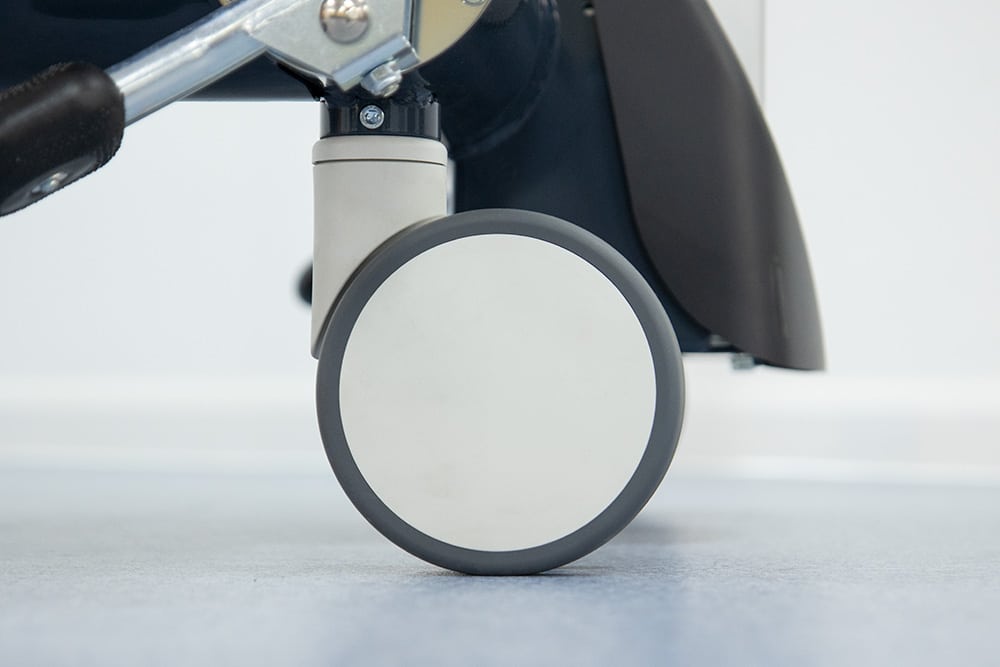

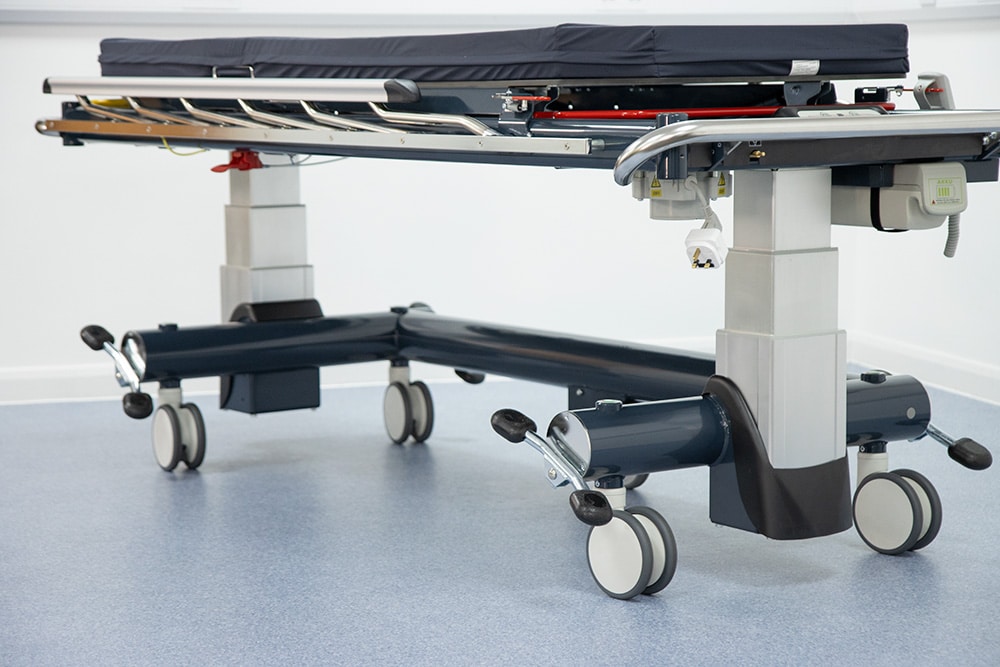

  Thanks to the 150mm double wheel castors and steering 5th wheel, the ImageFlow stretcher is also manoeuvrable in tight hospital environments where space is at a premium.

  The electrically operated high low function maintains comfort for the patient and is easy to use during procedures thanks to the simple 4-button handset.  The ImageFlow is battery powered, meaning there are no trailing leads to contend with whilst moving other devices around.  Once fully charged, the ImageFlow can perform 30 cycles under full load before the battery will be depleted.

  The ImageFlow also has an industry-leading safe working load of 320kg SWL. This means you can use it with more patients, including a bariatric caseload – and also those previously unable to access such treatments due to low safe working loads.

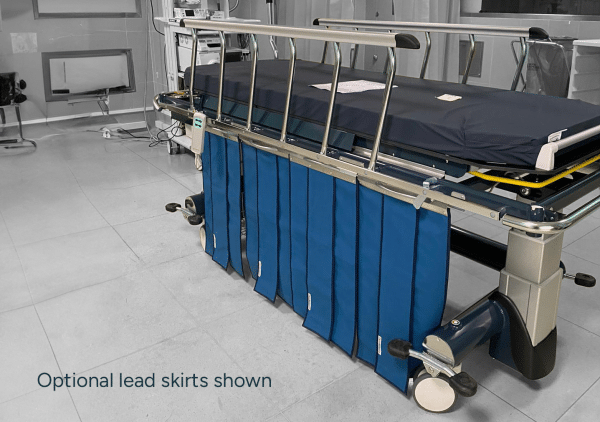

  A range of accessories is available, including full-length side and end lead skirts for staff protection.

  Built with a stainless steel frame for longevity and with the hospital environment in mind, the ImageFlow is reliable, robust and always ready to use.

  The ImageFlow is now available to purchase via a leasing agreement – get in touch here.

  The ImageFlow is available to trial and purchase from Felgains – get in touch here.

• Technical Specifications

  • Safe Working Load: 320kg
  • Dimensions;
    • Overall: 2295 x 975 mm
    • Mattress platform: 2050 x 740 mm
    • Radiolucent area: 1500 x 590 mm
    • Min platform height: 595 mm
    • Max platform height: 995 mm
  • Trendelenburg range: -13 – 13°
  • Backrest adjustability: 0 – 71°
  • Wheel diameter: Ø 150 mm double rollers
