Kuschall K-Series Rigid Active Wheelchair

Product Information

• Description

  The new Küschall K-Series 2.0 builds on all the strengths of the original rigid wheelchair model – iconic design with its ultralightweight monotube frame construction – and adds even more style, versatility and performance for a truly dynamic set up that will keep you on the move.

  Cutting-edge hydroforming technology brings the new design of the Kuschall K-Series Wheelchair to another level.  Iconic as ever, with its minimalist, straight edge design reimagined.  It also brings unrivalled driving performance with increased rigidity.  How?  Hydroforming is a process which allows metal to be formed into complex, ergonomically designed pieces, with adjustments to the frame thickness that optimises the weight to resistance ratio and rigidity. Tests show that for the same effort generated, deformation on a hydroformed frame is 60% lower than the rounded tube design and is comparable to carbon performance. The result: hydroforming creates a wheelchair that is stronger than before and effortless to propel.

  Fully adjustable for a perfect fit, the unique seat module can be effortlessly modified independently from the frame.  Adjust and adapt anytime, anywhere for consistently responsive performance.  With all adjustments made from the seat module, the frame maintains perfect geometry with the ground.

• Features & Benefits

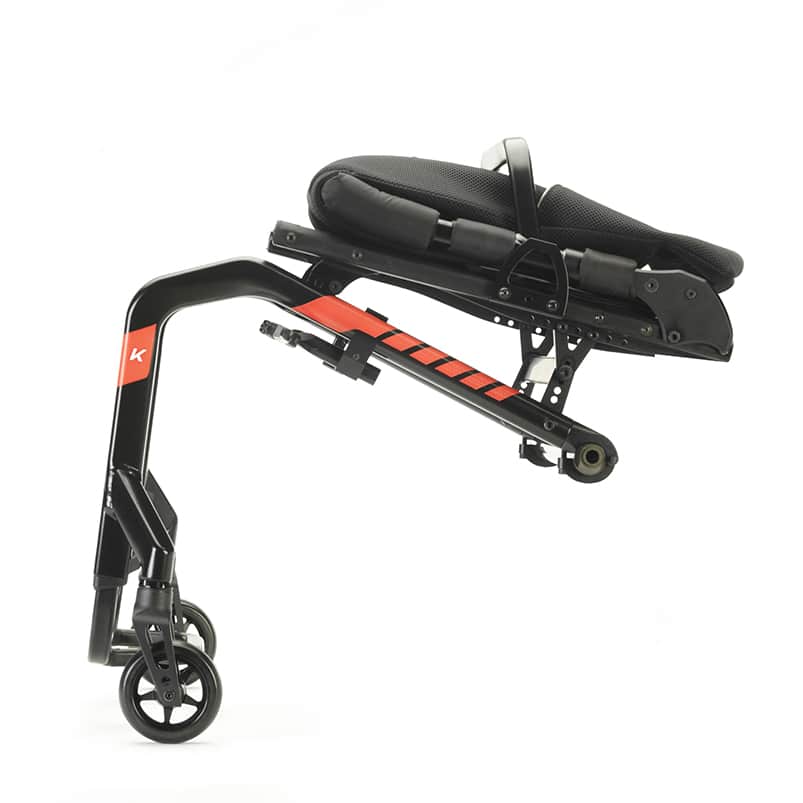

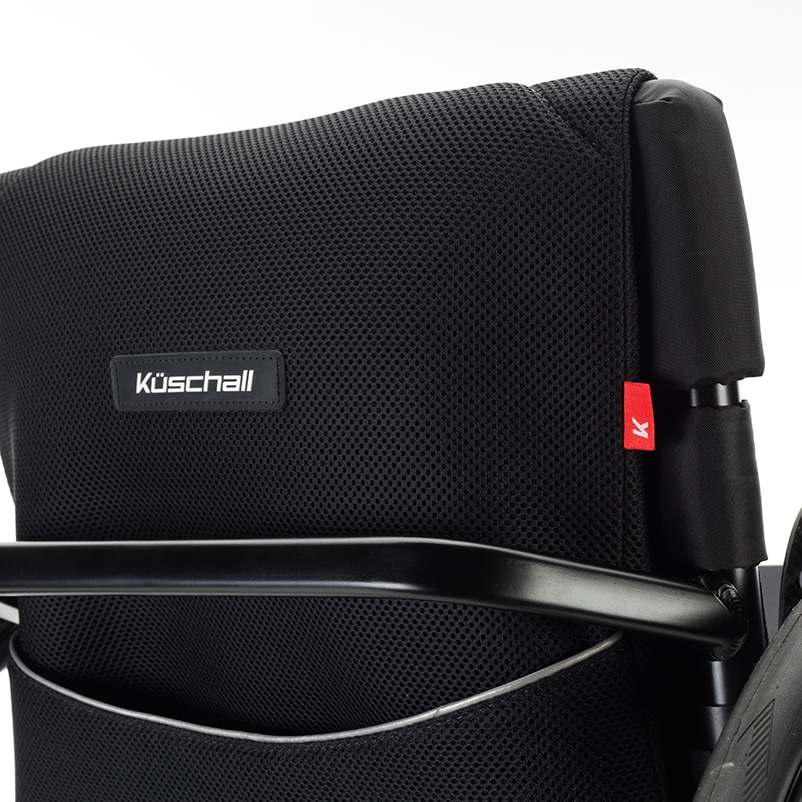

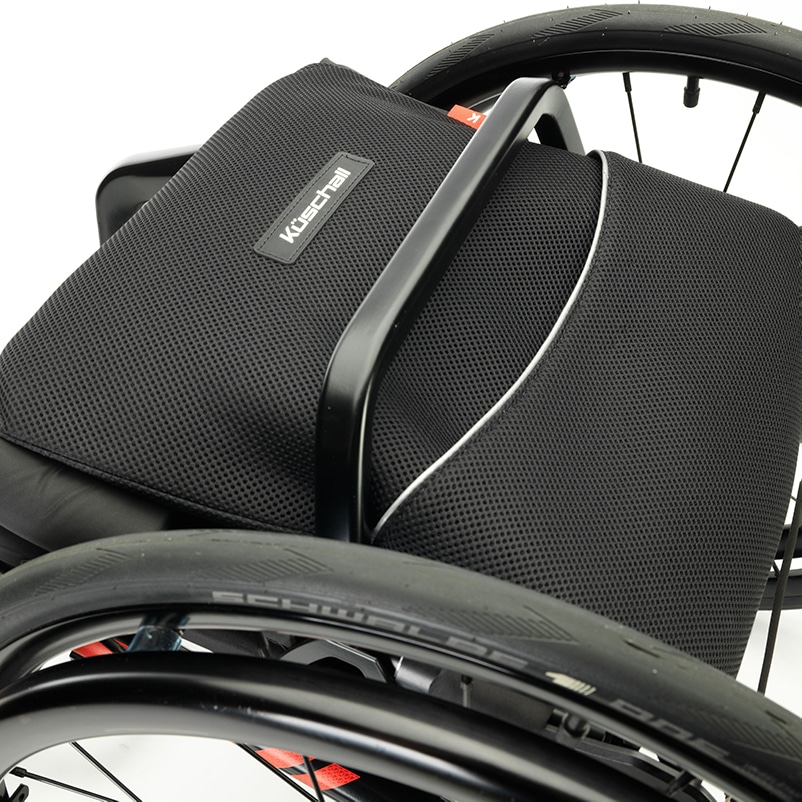

  • Enjoy easier transfers and lifting with the new ergonomic back brace, positioned lower than before with Matrx backrests in mind.  The standard folding backrest locks down and combines with the ergonomic grips built into hydroformed front frame to enable effortless loading into a car.

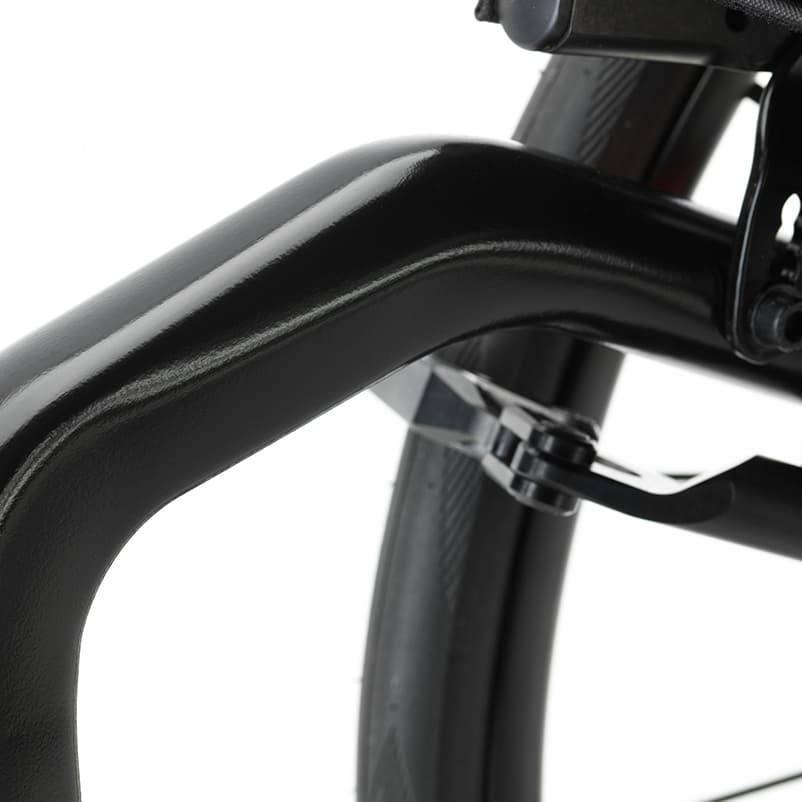

  • Küschall’s philosophy of precision cascades down to the smallest details.  Like the new lightweight aluminium brake.  The footbow is redesigned with a flat surface for better comfort.  And a re-designed castor fork with integrated bearings stops debris collecting for consistent driving performance over time.  The details matter.
  • For even sleeker aesthetics, choose the tapered front frame with either the 75° or 90° frame angle.
  • Other standard features include:
    • Height adjustable rigid footrest
    • Quick release wheels (24 inches)
    • Angle and height adjustable backrest
    • Tension adjustable back upholstery
    • Composite sideguards
    • 3° camber
    • Tool kit
  • Crash tested in accordance with ISO 7176-19, so you can use it as a transport seat in your vehicle.

• Options*

  • 75° or 90° frame angle
  • Seat suspension
  • Tension adjustable seat upholstery
  • Angle adjustable carbon footplate
  • Adjustable camber axle
  • Carbon axle
  • Carbon mudguards
  • Titanium footrest
  • Titanium backrest
  • 3 armrest styles
  • 5 push handles styles including fold-down
  • 5 brake styles
  • 11 front castor styles
  • 12 rear wheel styles
  • 11 handrim styles
  • 5 frame colours (9 specials)
  • Customised RAL colour
  • Frame decals
  • Spoke guards
  • Anti-tippers
  • Transport kit
  • Frame protectors
  • Seat bag

  *please ask us for a full list of options

• Dimensions & Specifications

  • Seat width: 320 – 500 mm in increments of 20 mm / 12.5 – 19.7 inches in increments of 0.78 inches
  • Seat depth: 350 – 525 mm in increments of 25 mm / 13.7 – 20.6 inches in increments of 0.98 inches
  • Seat height (front): front: 450 – 520 mm / 17.7 – 20.4 inches
  • Seat height (rear): 390 – 490 mm in increments of 10 mm / 15.3 – 19.2 inches in increments of 0.39                inches
  • Backrest height: 270 – 480 mm in increments of 15 mm / 10.6 – 18.9 inches in increments of 0.59 inches
  • Backrest angle: 74°/78°/82°/ 86°/90° / 94°
  • Camber: 0° / 3° / 6°
  • SWL: 130 kg / 20 stone
  • Weight: From 7.8 kg / 1.2 stone
  • Dismantled weight: From 5.1 kg / 0.8 stone

  Warranty: 5 years (frame)

  Crash Tested: Yes
