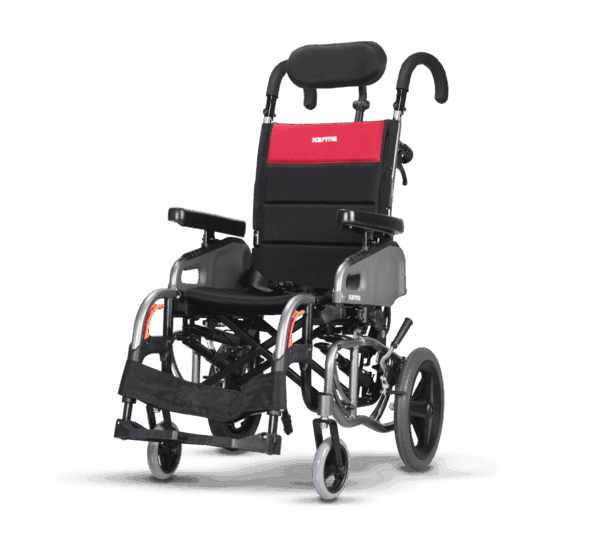

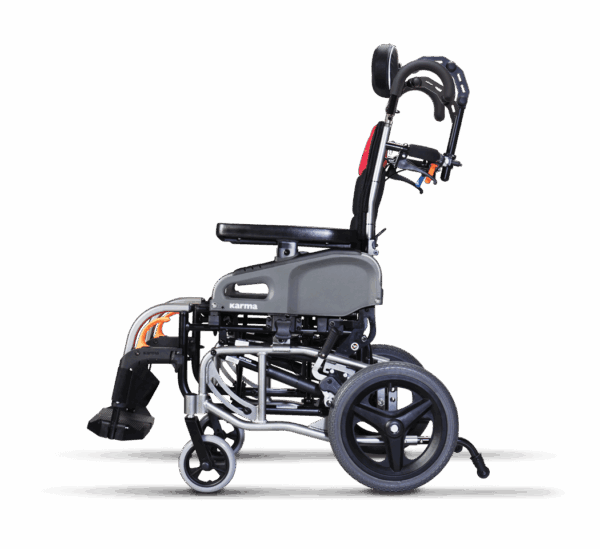

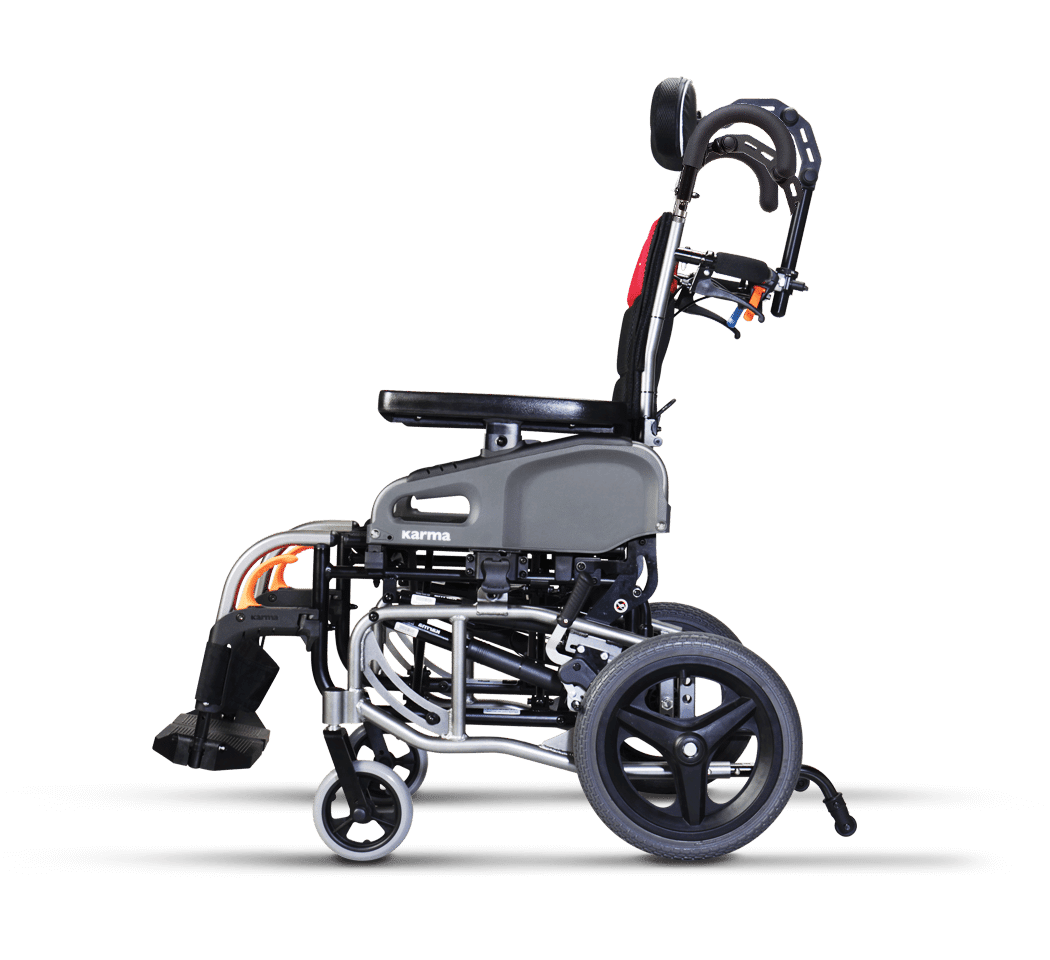

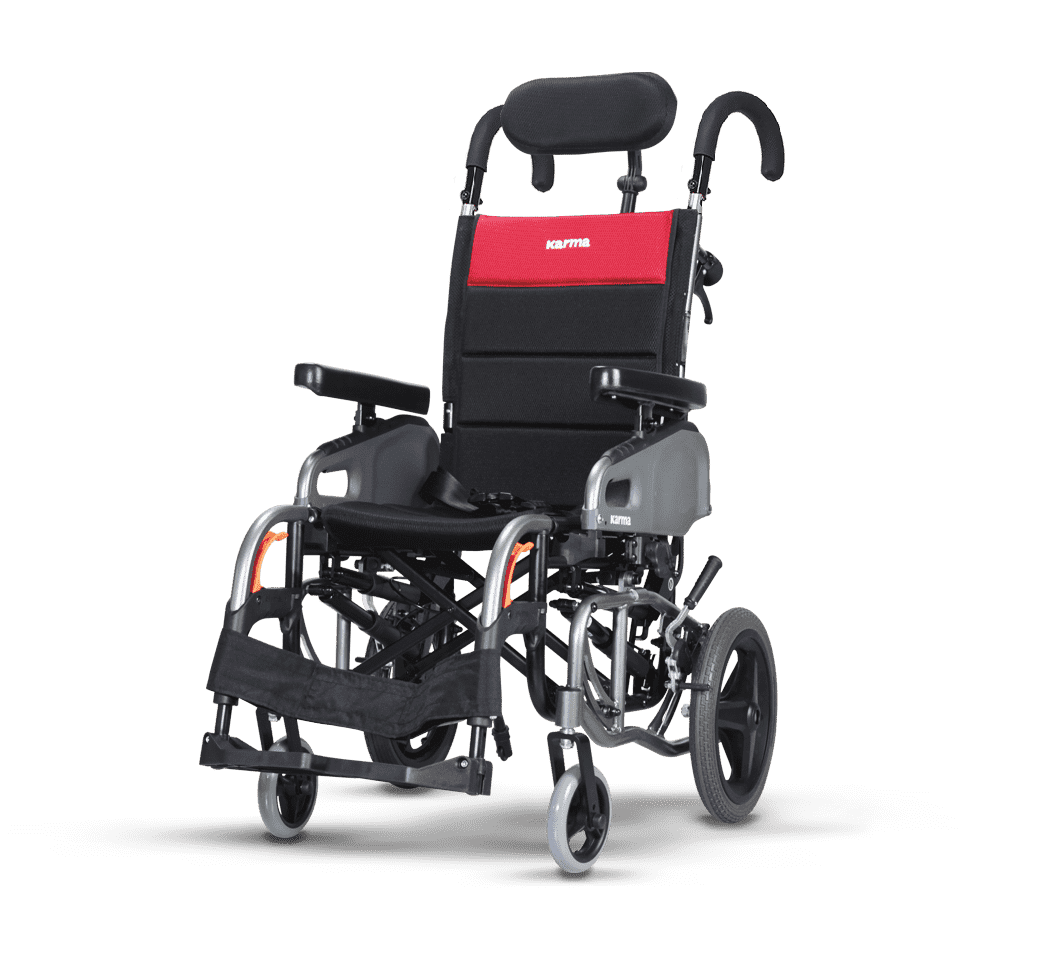

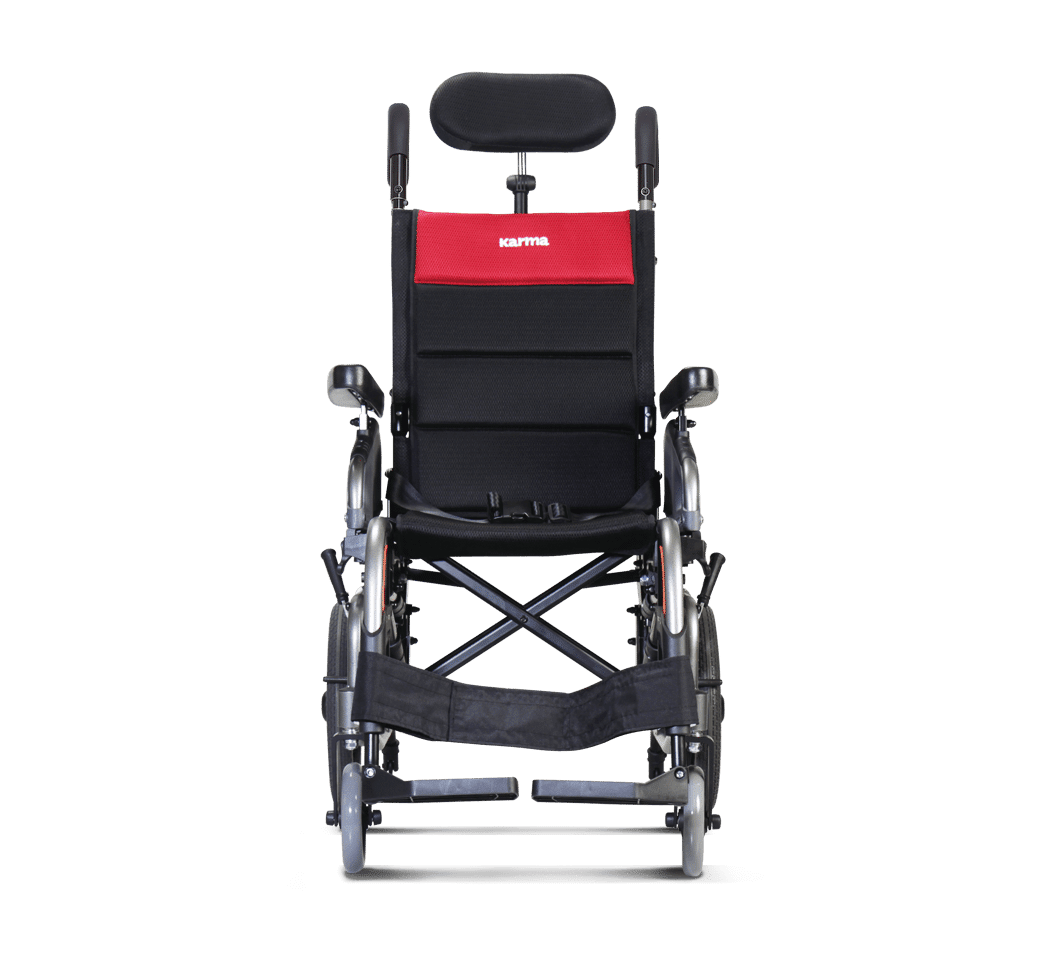

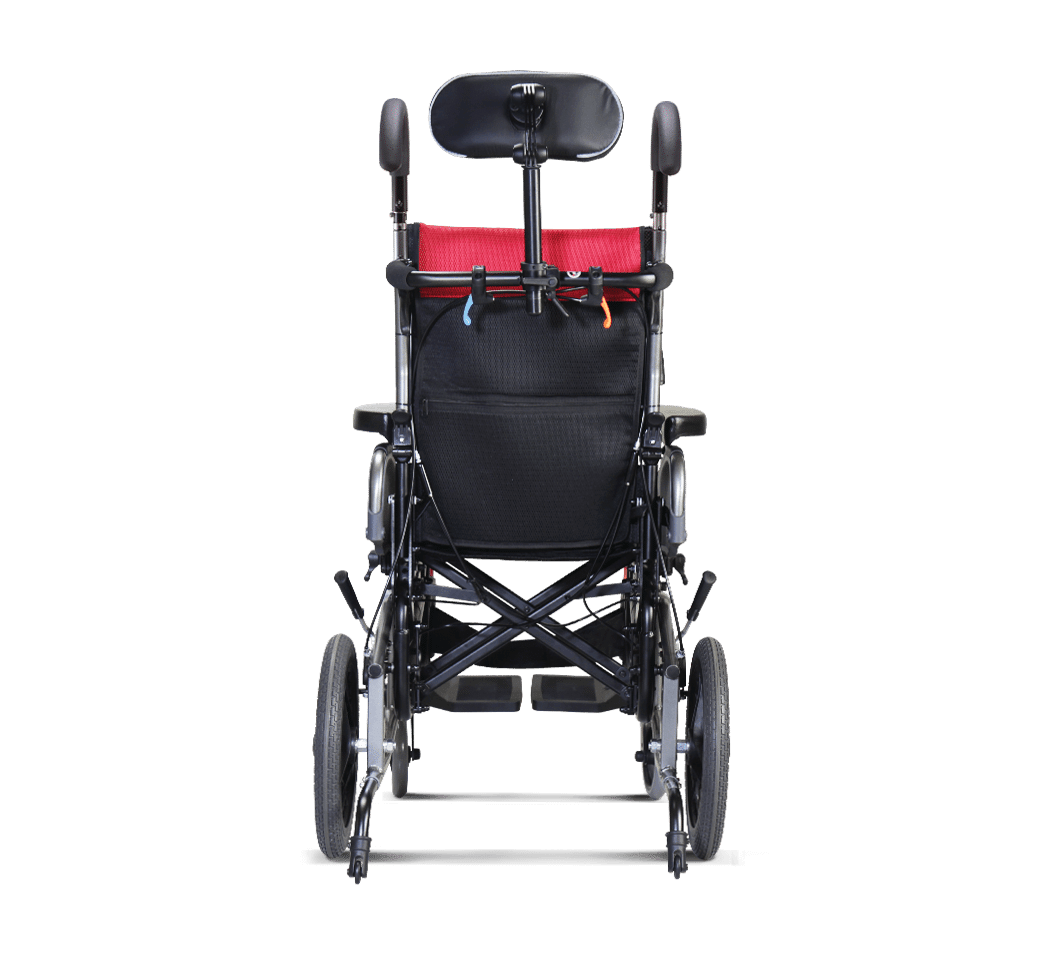

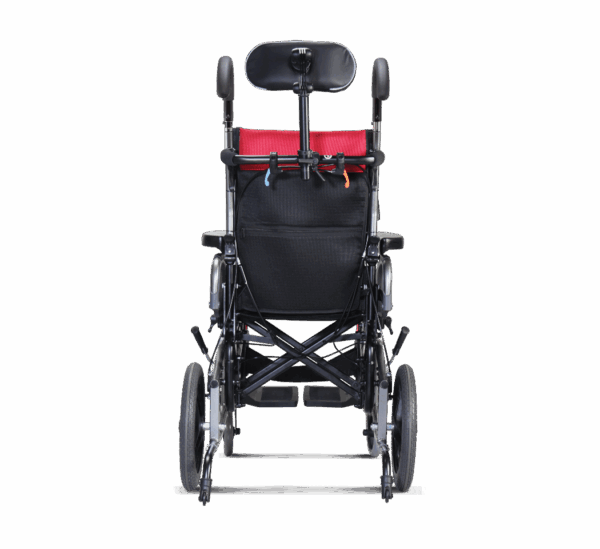

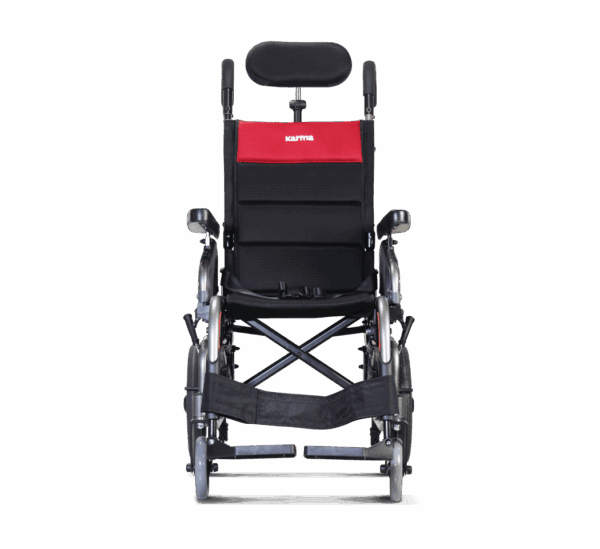

Karma VIP2 Tilting & Reclining Wheelchair

Product Information

• Description

  The Karma VIP2 Tilting & Reclining Wheelchair allows wheelchair users with weak trunk control to travel like everyone else. The tilt-in-space and reclining function provide the optimal pressure relief and positioning settings. And thanks to its foldable and lightweight design, it’s also car transportable.

  • Tilt-in-Space: Allows the wheelchair user to change position throughout the day, which will redistribute and relieves pressure. This feature helps reduce the risk of developing pressure ulcer and prevent discomfort associated with prolonged sitting. The weight shifting system provides a steady smooth recline and a sense of security for the user when reclining.
  • Anti-Sliding Reclining System: Solves the problem of sliding by locating the reclining pivot point of the chair and bringing the user’s hip joint closer to it. This placement synchronises the motion of the body and the chair and minimizes the sliding and the shearing when reclining or sitting upright.
  • Adjustable and Detachable Armrests: Adjust the height of the armrests, with no tools required. Easily removable for transfers and transport.
  • Detachable Swing-away Footrest: Allows for easy transfer, on and off the wheelchair and detaches with no tools required.
  • Tension Adjustable Backrest: Use the adjustable Velcro straps to change the tension and conform according to the wheelchair user. This helps to prevent slouching and the hammock effect.
  • Clean, Comfortable, and Fresh: the removable upholstery is anti-microbial, breathable and washable.
  • Crash Tested: The VIP2 is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transport.

• Dimensions & Technical Info

  	Transit
  Nominal seat width (mm/in)*	400 / 16	400 / 16	450 / 18	450 / 18
  Nominal seat depth (mm/in)**	415 / 16	465 / 18	415 / 16	465 / 18
  Front caster / Rear wheel size (in)	6 / 14、7 / 14	6 / 14、7 / 14	6 / 14、7 / 14	6 / 14、7 / 14
  Backrest height (mm)	510 / 560	510 / 560	510 / 560	510 / 560
  Headrest height above seat (mm)	630 ~ 860	630 ~ 860	630 ~ 860	630 ~ 860
  Armrest to seat distance (mm)	220 ~ 280	220 ~ 280	220 ~ 280	220 ~ 280
  Seat surface height at front edge (mm)	470 / 490	470 / 490	470 / 490	470 / 490
  Footrest to seat distance (mm)	320 ~ 420	320 ~ 420	320 ~ 420	320 ~ 420
  Seat plane angle (X°)	1 ~ 36	1 ~ 36	1 ~ 36	1 ~ 36
  Backrest angle (X°)	13 ~ 43	13 ~ 43	13 ~ 43	13 ~ 43
  Seat to backrest angle (X°)	102 ~ 132	102 ~ 132	102 ~ 132	102 ~ 132
  Leg to seat angle (X°)	100	100	100	100
  Overall length with legrest (mm)	1070	1120	1070	1120
  Overall width (mm)	630	630	680	680
  Overall height (mm)	1380	1380	1380	1380

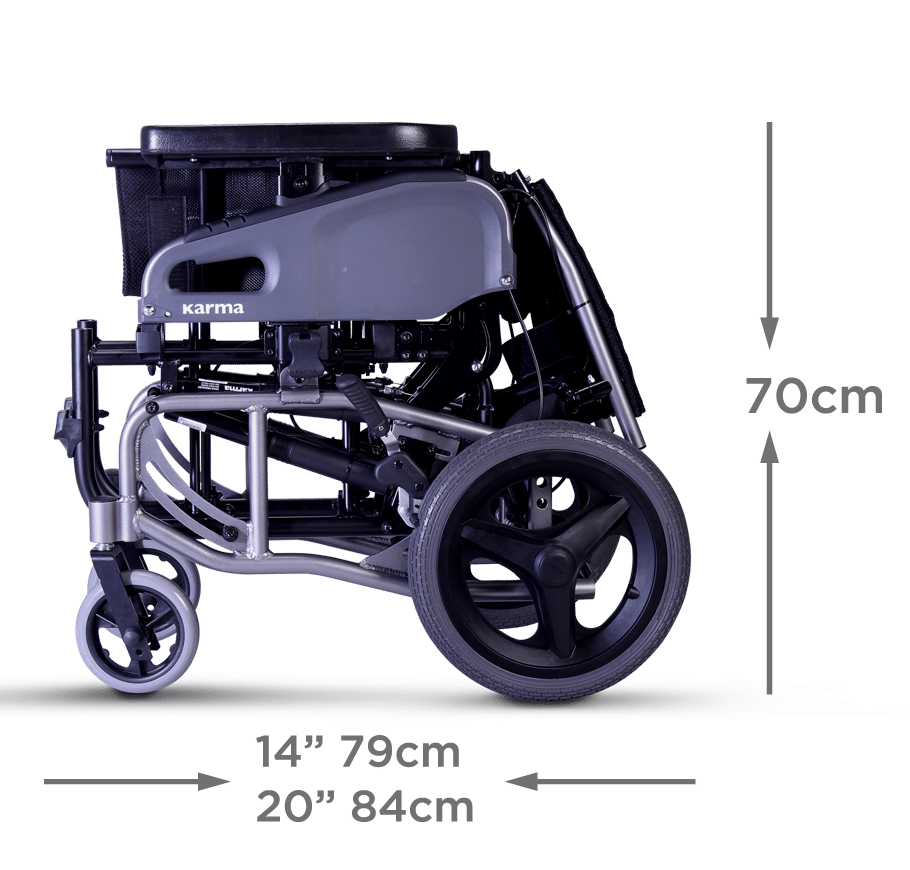

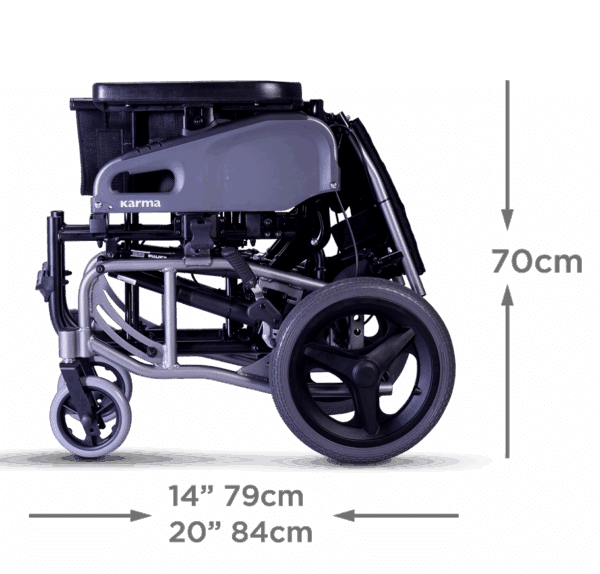

  Folded length (mm)	775	825	775	825
  Folded width (mm)	355	355	355	355
  Folded height (mm)	680	680	680	680
  Total mass (kg)	24.4	24.7	24.9	25.2
  Mass of the heaviest part (kg)	17.8	18.0	18.1	18.3
  Maximum user weight (kg)	115	115	115	115

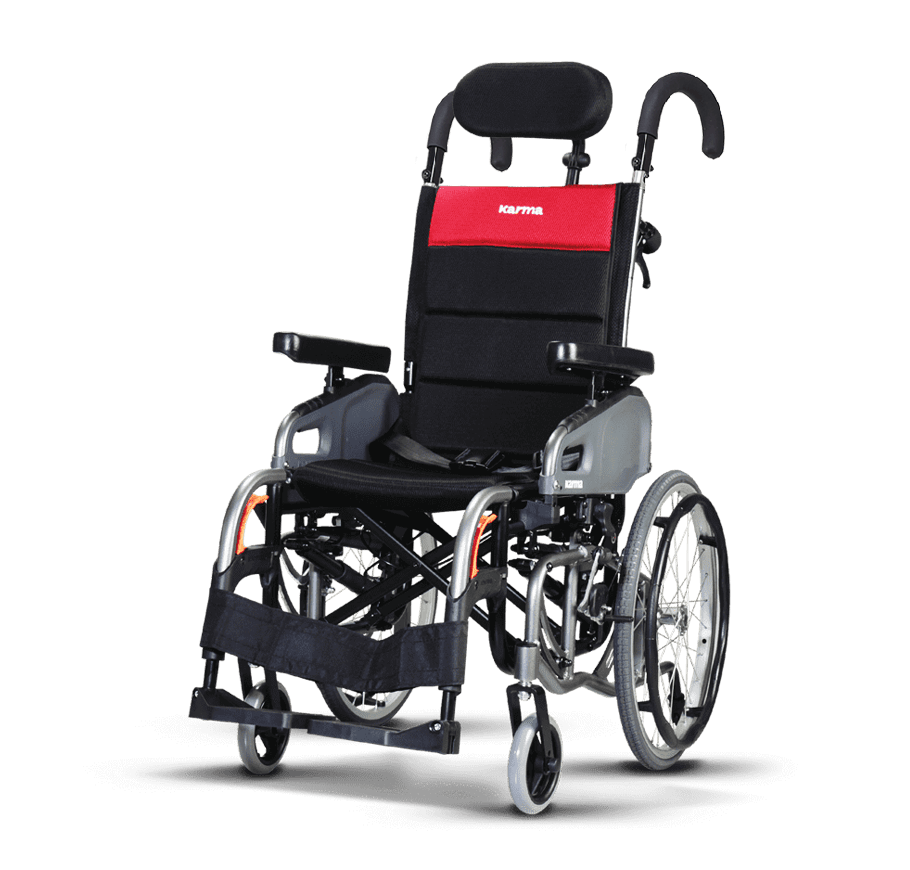

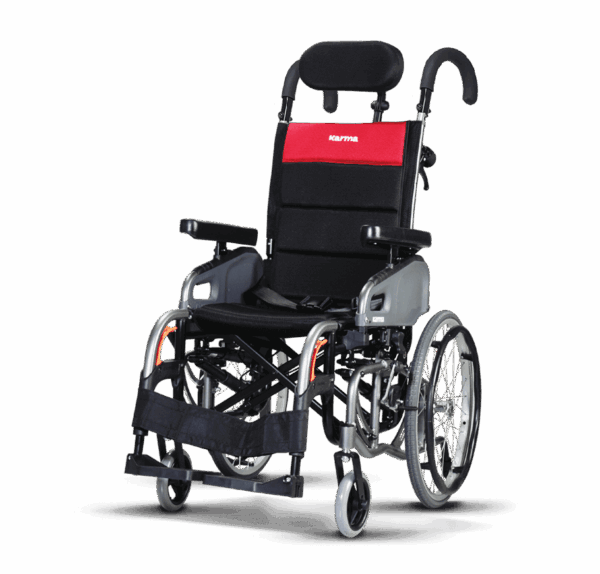

  	Self-Propelled
  Nominal seat width (mm/in)*	400 / 16	400 / 16	450 / 18	450 / 18
  Nominal seat depth (mm/in)**	415 / 16	465 / 18	415 / 16	465 / 18
  Front caster / Rear wheel size (in)	6 / 20、7 / 20	6 / 20、7 / 20	6 / 20、7 / 2014	6 / 20、7 / 20
  Backrest height (mm)	510 / 560	510 / 560	510 / 560	510 / 560
  Armrest to seat distance (mm)	220 ~ 280	220 ~ 280	220 ~ 280	220 ~ 280
  Seat surface height at front edge (mm)	470 / 490	470 / 490	470 / 490	470 / 490
  Footrest to seat distance (mm)	320 ~ 420	320 ~ 420	320 ~ 420	320 ~ 420
  Seat plane angle (X°)	1 ~ 36	1 ~ 36	1 ~ 36	1 ~ 36
  Backrest angle (X°)	13 ~ 43	13 ~ 43	13 ~ 43	13 ~ 43
  Seat to backrest angle (X°)	102 ~ 132	102 ~ 132	102 ~ 132	102 ~ 132
  Leg to seat angle (X°)	100	100	100	100
  Overall length with legrest (mm)	1070	1120	1070	1120
  Overall width (mm)	660	660	710	710
  Overall height (mm)	1380	1380	1380	1380
  Folded length (mm)	840	890	840	890
  Folded width (mm)	380	380	380	380
  Folded height (mm)	715	715	715	715
  Total mass (kg)	25.4	25.6	25.6	25.8
  Mass of the heaviest part (kg)	15.4 (20Q) 19.0 (20F)	15.6 (20Q) 19.2 (20F)	15.6 (20Q) 19.2 (20F)	15.8 (20Q) 19.4 (20F)
  Maximum user weight (kg)	115	115	115	115
