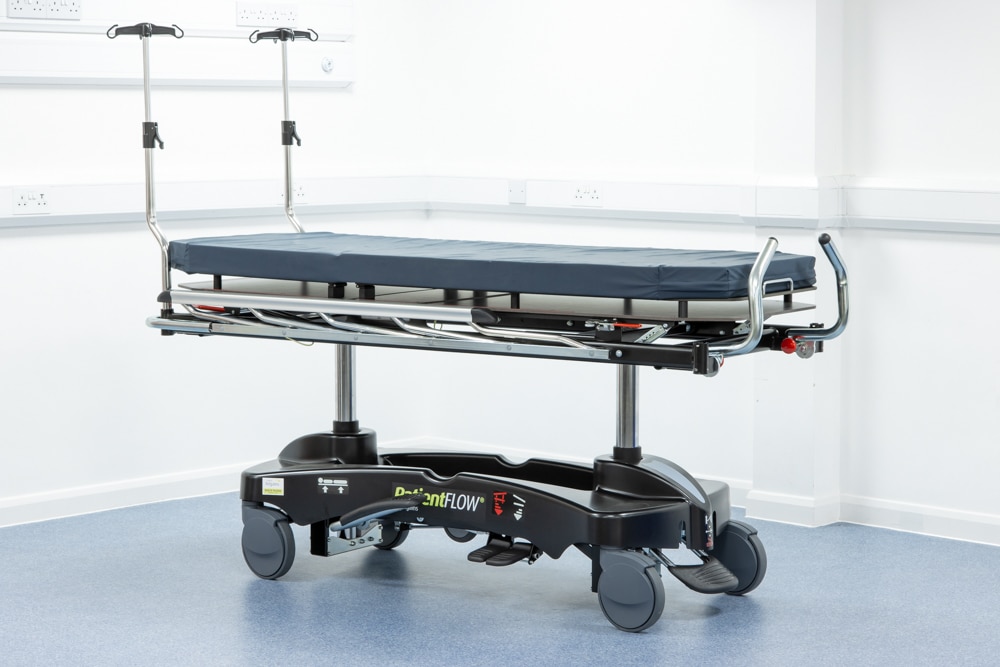

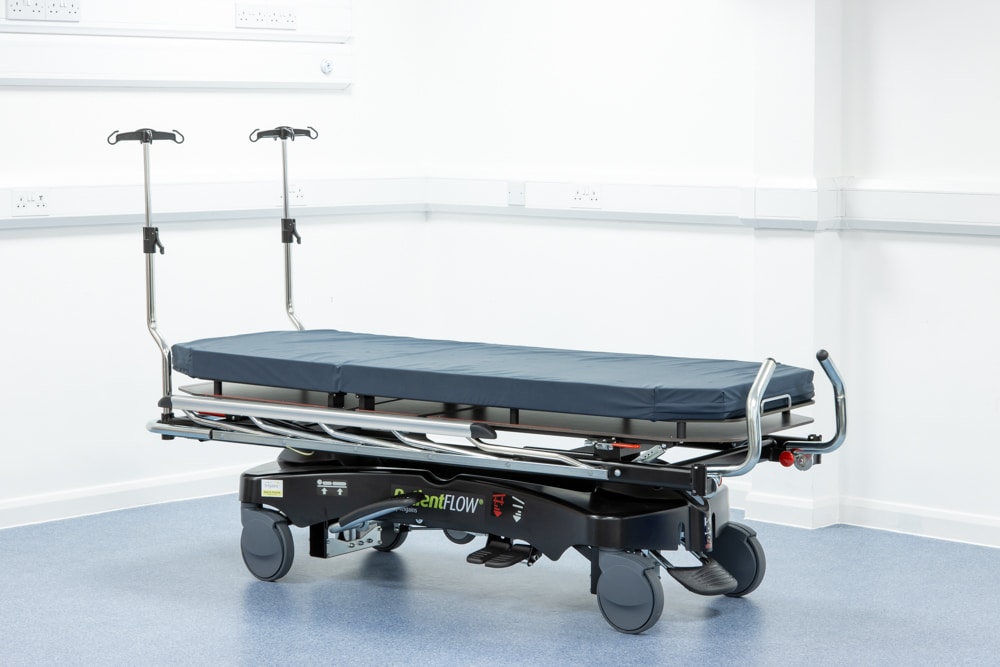

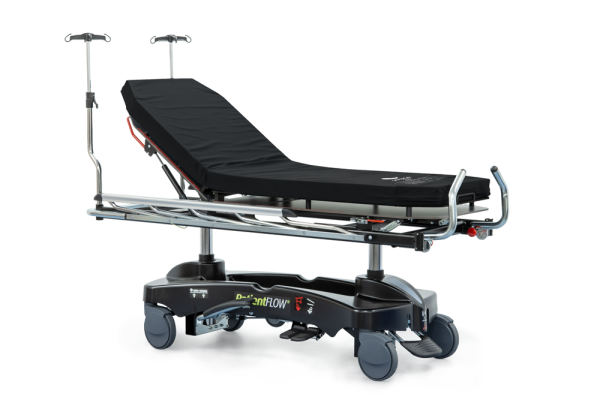

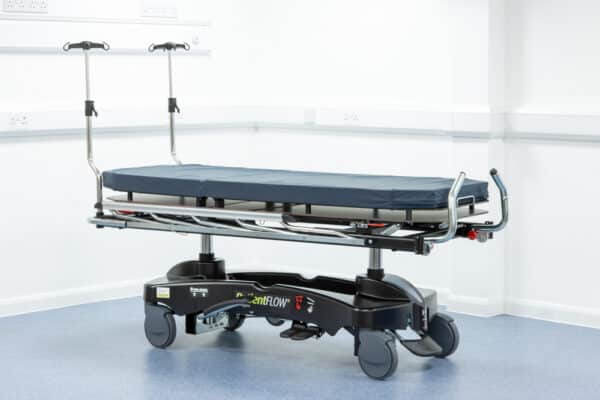

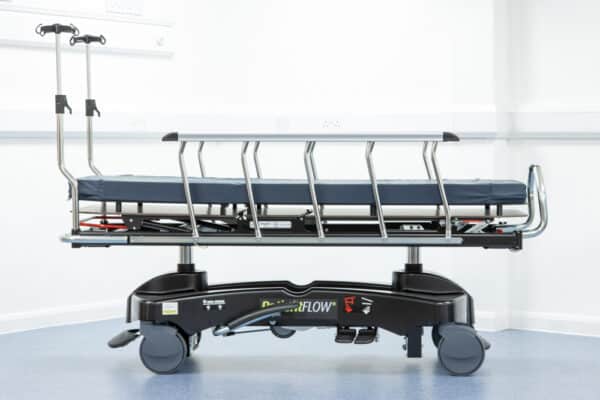

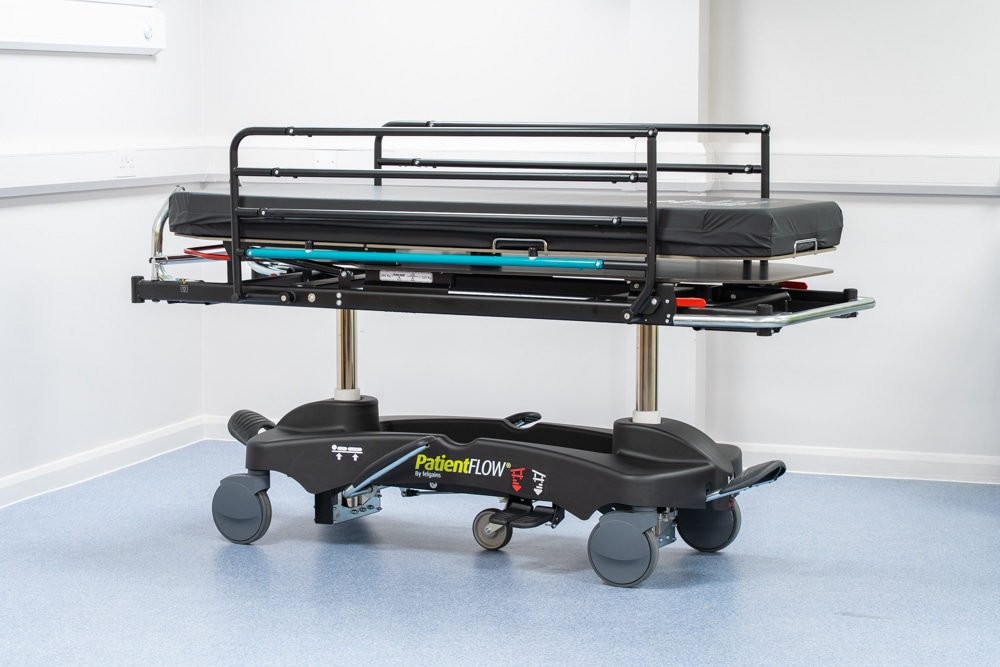

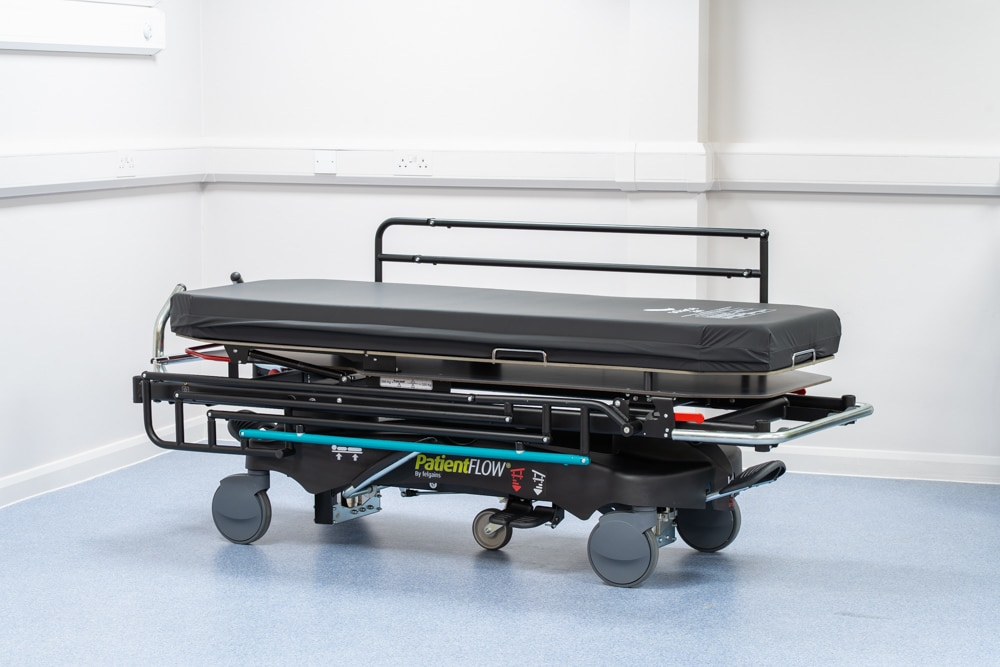

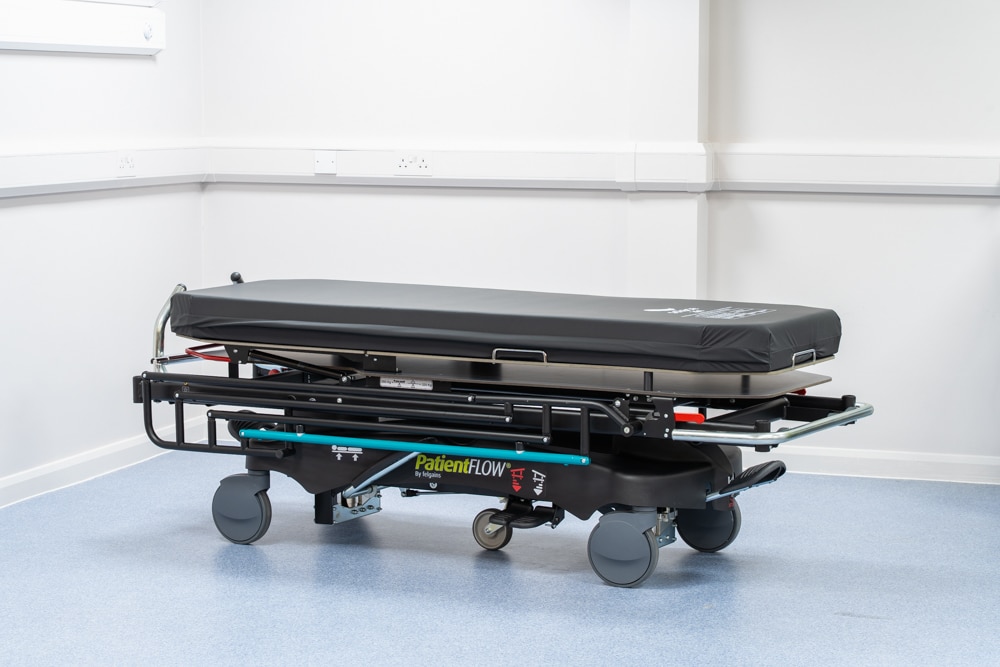

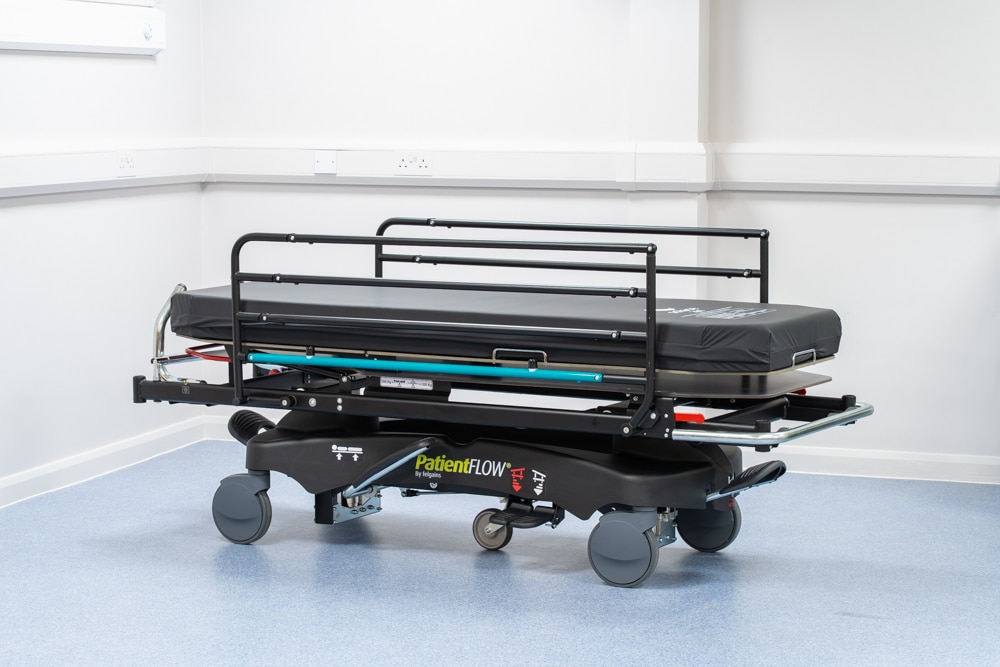

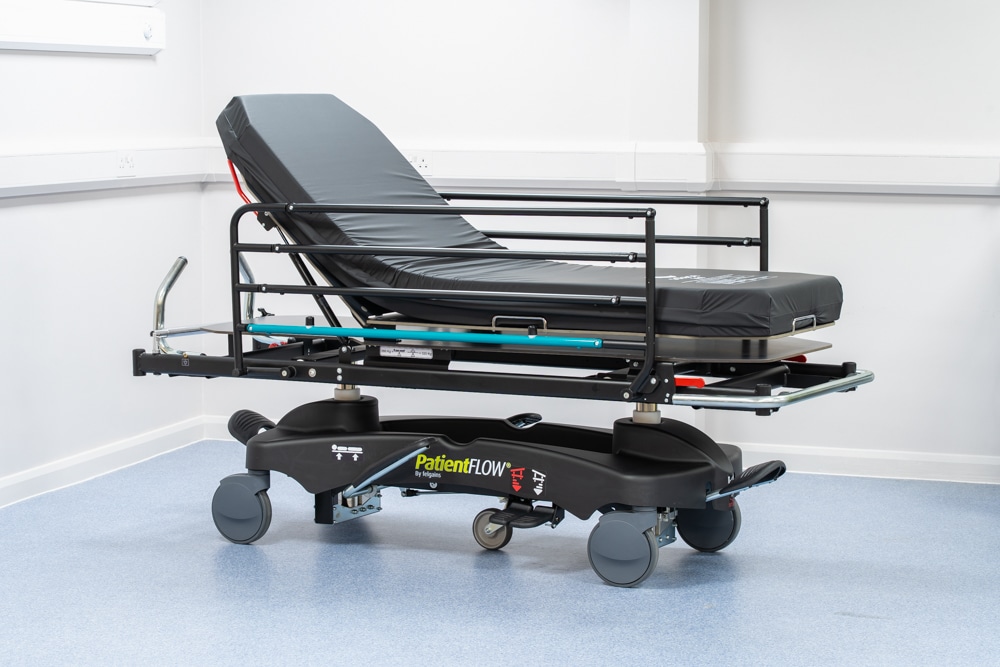

PatientFlow Hospital Patient Transport Stretcher

Product Information

• Description

  The PatientFlow is a hospital stretcher for emergency departments and any areas in hospitals where patients are transported. This A&E trolley is lightweight and easy to manoeuvre, yet robustly built to withstand heavy use all day, every day. For example, the PatientFlow has heavy duty IV poles that double up as push handles, giving you options on pushing positions for excellent ergonomics.

  The design of the PatientFlow accommodates the requirements of a wide range of professionals, from nurses and doctors to radiographers and physiotherapists.

  The 5th wheel under the centre of the trolley means that the PatientFlow is very manoeuvrable – especially important in sometimes crowded emergency departments.

  Available in both hydraulic and electric hybrid electric versions; the Electric version allows for smooth movements across all functions, whilst the Hybrid Electric version of the PatientFlow has powered functionality and the non-essential functions as gas-spring assisted  – maximising battery capacity.

  The PatientFlow is now available to purchase via a leasing agreement – get in touch here.

  The PatientFlow is available to trial and purchase from Felgains – get in touch here.

• Options

  • 3 base configurations available
    • PatientFlow Trolley with 2 Section Platform
    • PatientFlow Trolley with 4 Section Platform and CPR
    • PatientFlow Trolley with X-Ray tunnel

  • 3 widths of mattress platform available
    • 575mm
    • 650mm
    • 700mm
    • Custom widths of up to 880mm are available – please contact us on 01473 741144

  • 2 Mattress SWL options
    • 140kg
    • 260kg

  • Optional extras
    • Fifth Wheel Warning Light
    • Monitor Mount
    • Paper Couch Roll Holder
    • Power Drive System

• Technical Specifications

  Safe Working Load	320kg*
  Max patient weight	260kg
  Min platform height (2 & 4 section platform version)	550mm
  Max platform height (2 & 4 section platform version)	850mm
  Min platform height (X-Ray platform version)	650mm
  Max platform height (X-Ray platform version)	915mm
  Patient platform dimensions	700 x 1950mm
  Overall stretcher dimensions	870 x 2075mm
  Stretcher weight	102kg
  Auto regression	No
  Hydraulic option	Yes
  Electric option	Yes

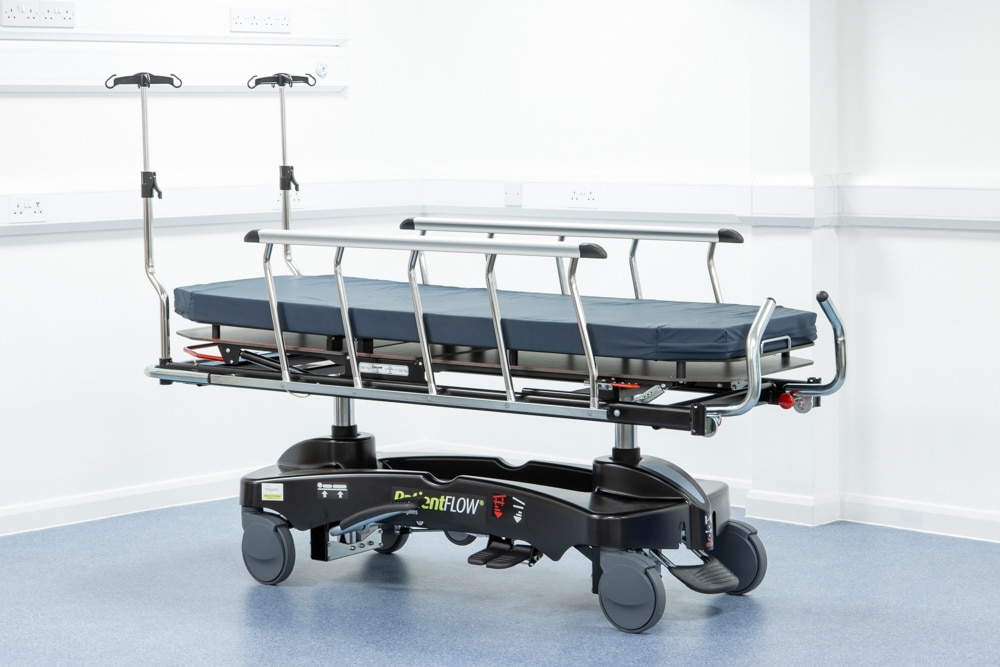

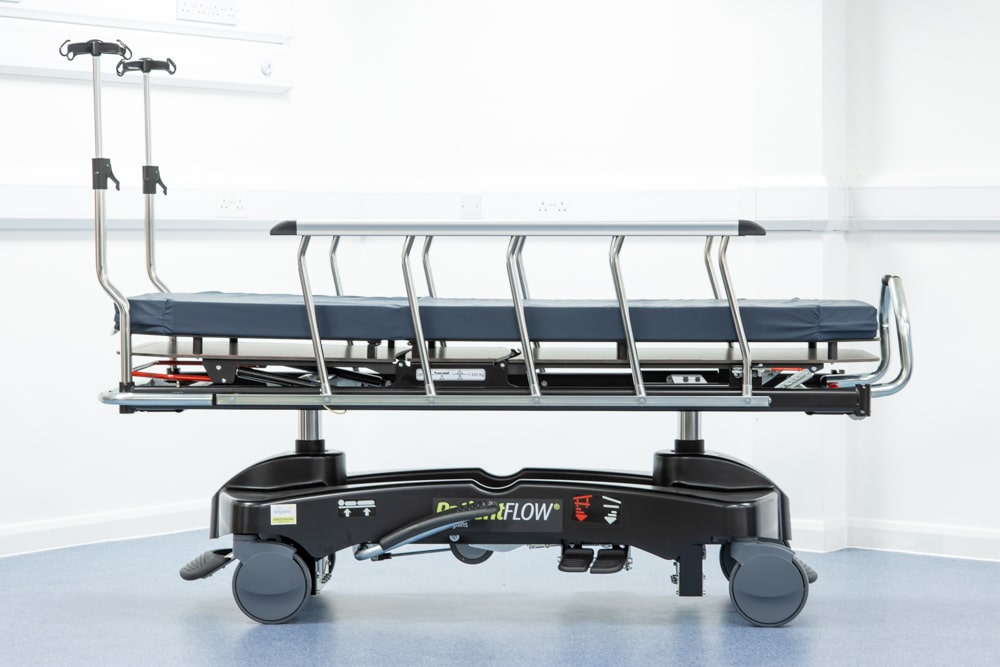

  Level siderails	Yes
  Auto chair position	No
  Warranty	2 Year
  Power drive option	Yes
  Single or double column	Double
  Fifth wheel	Yes
  Charging system	Retractor
  Expected service life	10 years
  Cylinder holders	Yes
  Battery	Yes
  X Ray cassette holder	Option
  Lock out function	No
  Urine bag hooks	Yes
  Folding IV pole	No (currently in development)
  Backrest/Knee break	Yes, both
  X-Ray tunnel available	Yes

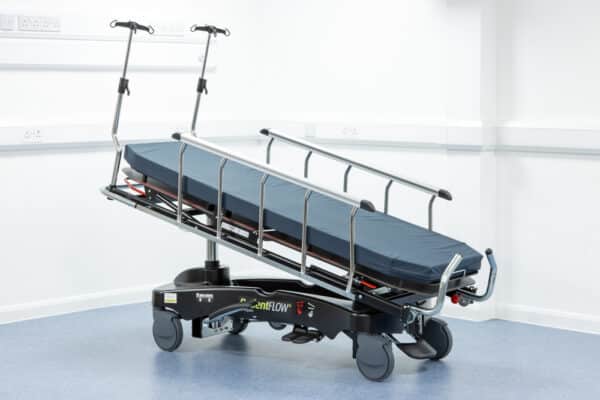

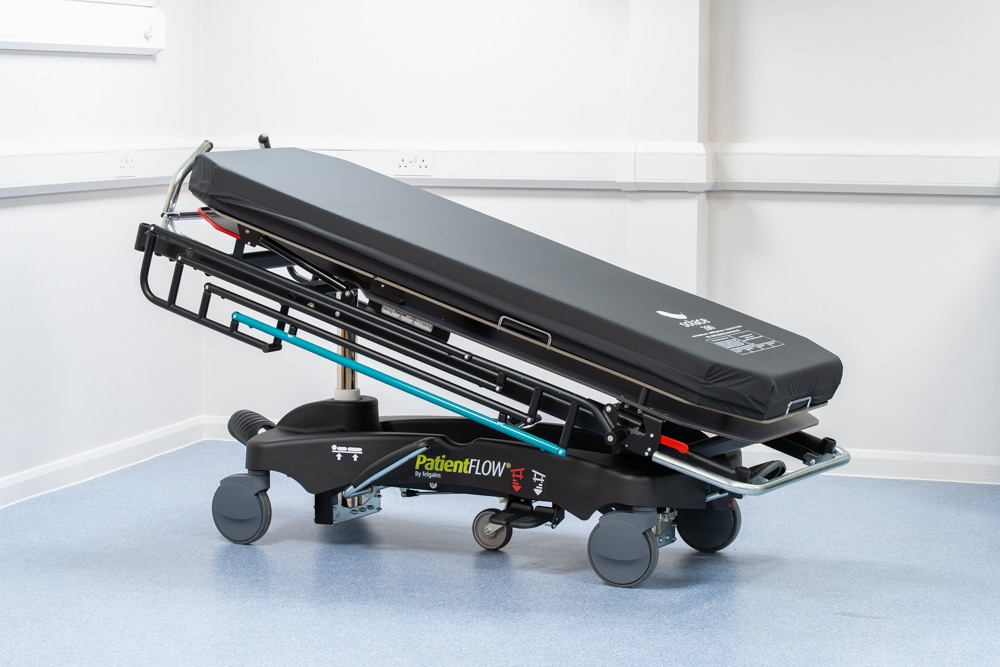

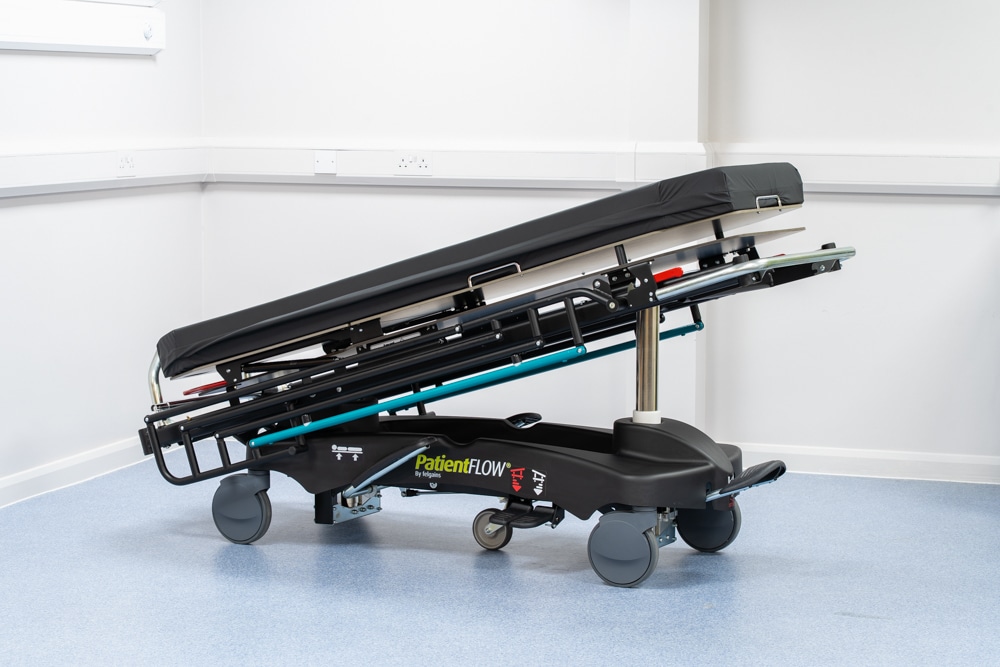

  Trendelenburg range	-18 – 18°

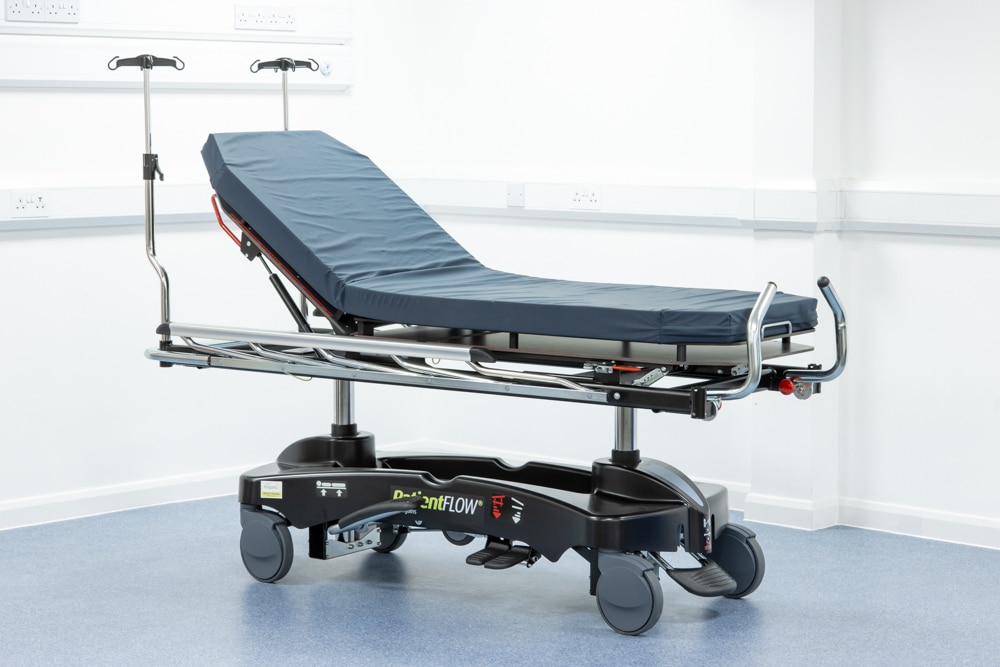

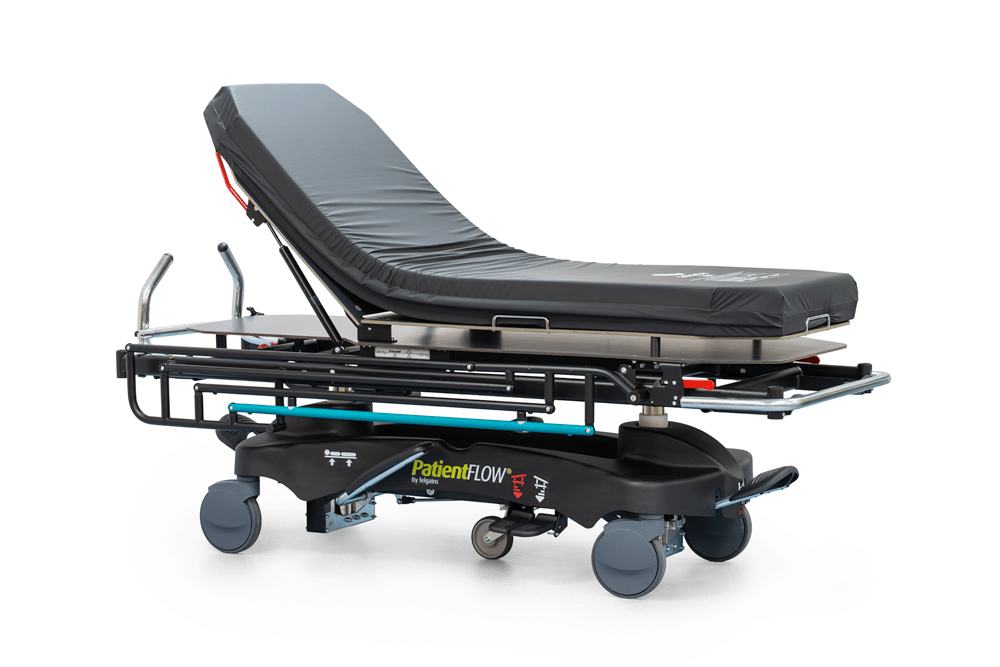

  Backrest angle	0 – 90°
  Kneebrake angle	0 – 20° (only for 4 section platform version)
  Wheels	Ø 200 mm single rollers

  *Higher SWL possible – please contact us on 01473 741144
