FLARE Imaging Table

Product Information

• Description

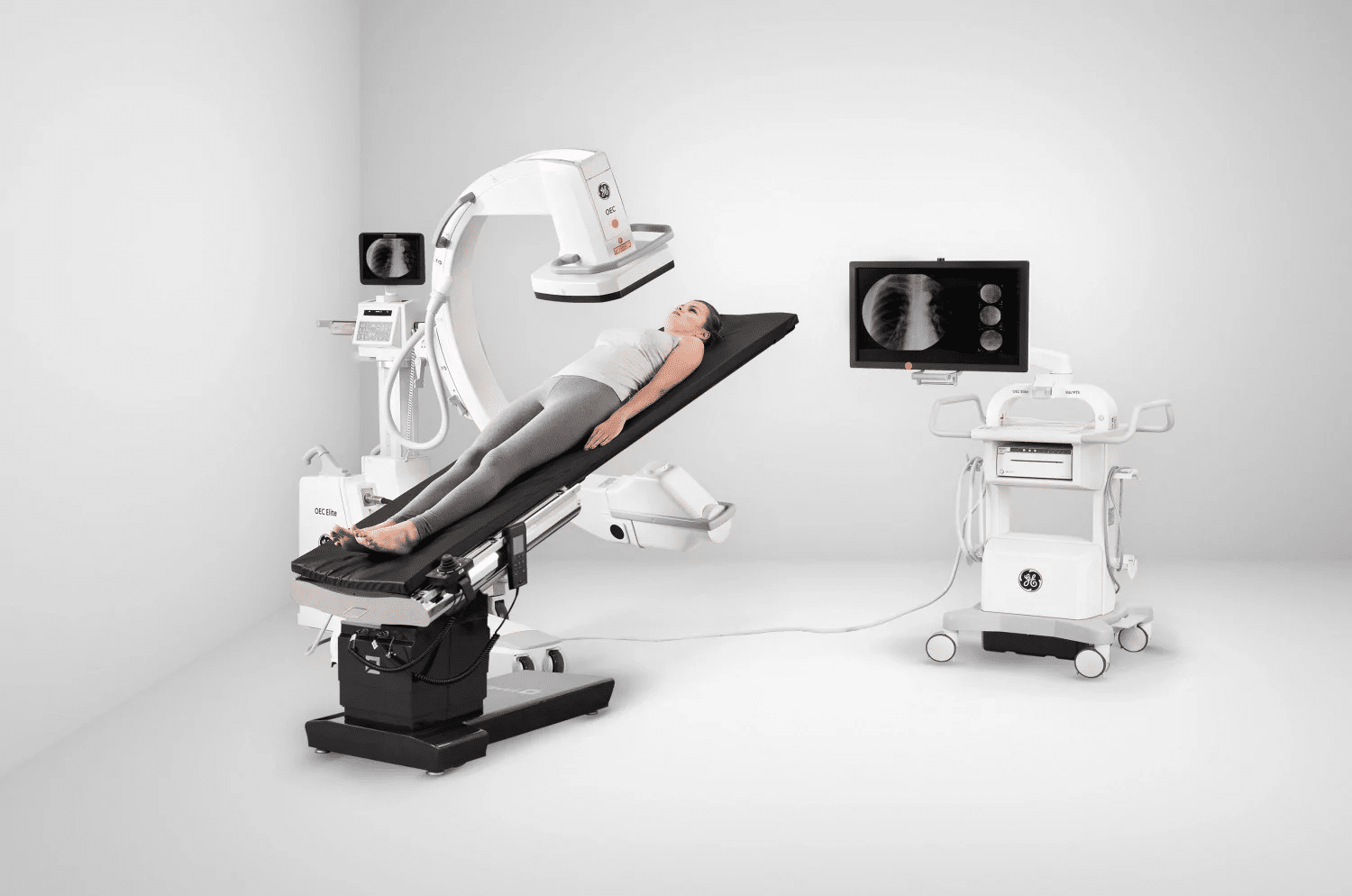

  The FLARE Operating Table from Famed is designed to work seamlessly with a C-arm camera and is tailored for numerous procedures, including cardiovascular surgery, neurosurgery, urological surgery, orthopaedic surgery, spine pain therapy, and endoscopic procedures.

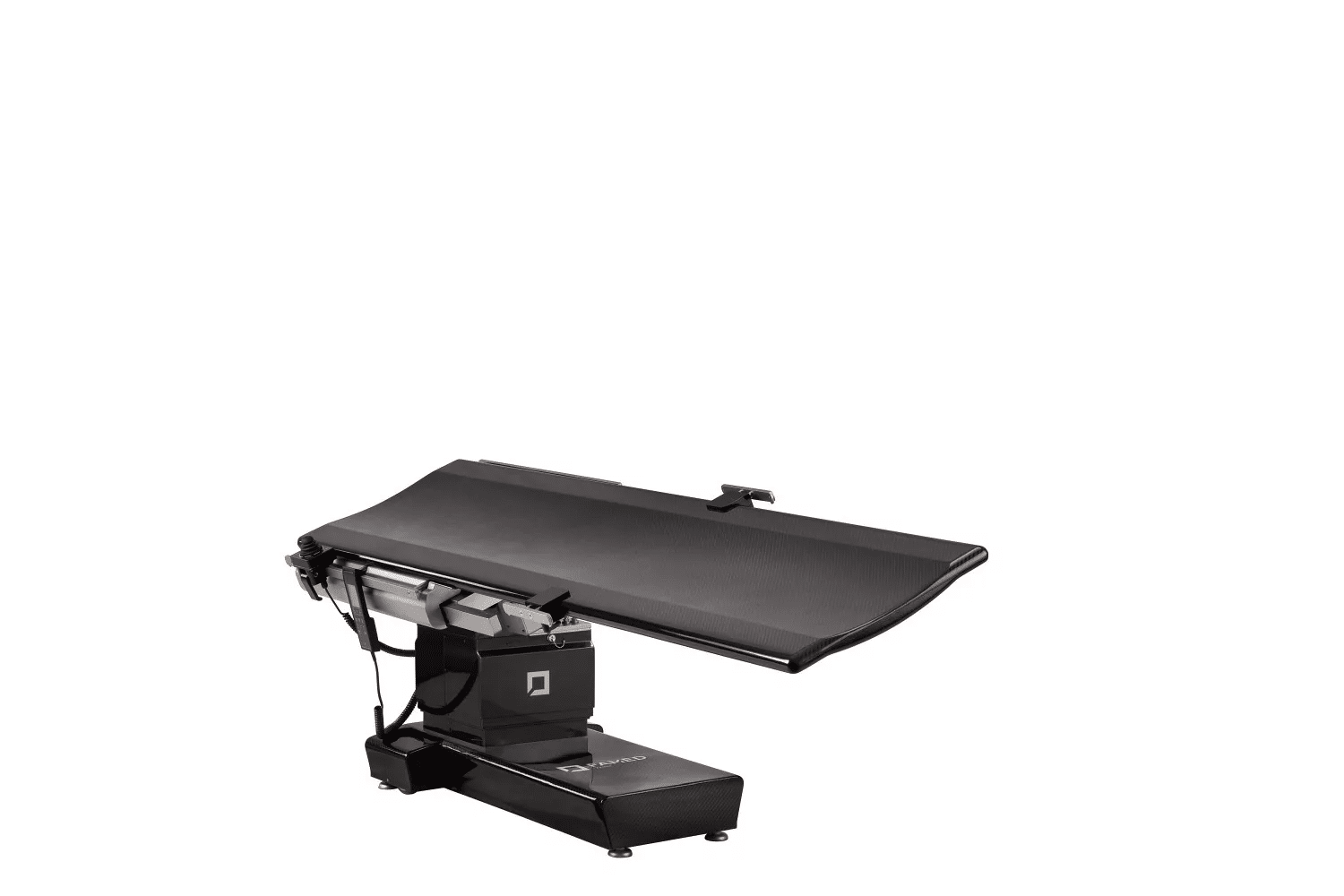

  The ergonomic, profiled, and thin TotalClear™ tabletop is completely transparent to X-rays and is made entirely of high-quality carbon fibre. It has been designed to maximally reduce the radiation dose that is passed on to the patient during the procedure. Thanks to this, intraoperative imaging is safer for the patient and staff.

  Choosing the right table position is easy thanks to a joystick, which allows the precise movement of the tabletop in any direction.

• Key Features

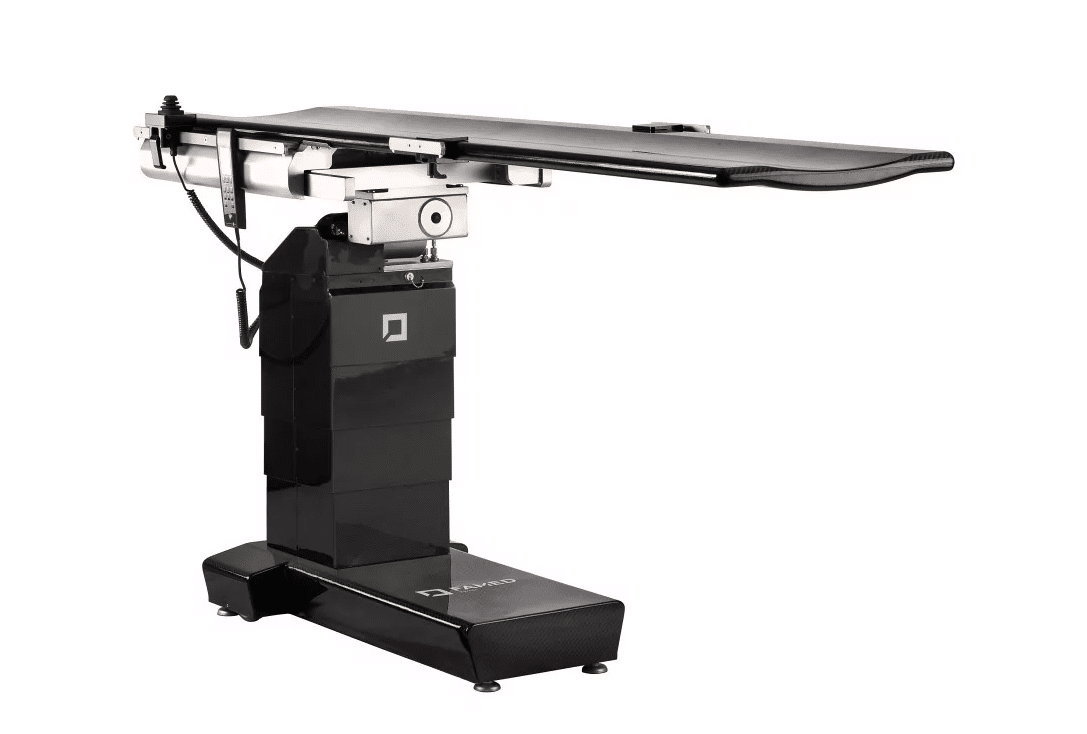

  Carbon fibre construction	The base, column and tabletop of the Famed FLARE table are made of carbon fibre, which reduces the risk of damage to table components when changing the orientation of the C-arm or the position of the tabletop. The carbon fibre is less vulnerable to damage by crushing or pressure than the standard stainless steel base.
  Large transparency area	The tabletop currently has the best on the market parameter for X-ray radiation permeability – 0.33 mm Al (aluminium equivalent). The available imaging area in the extreme longitudinal shift positions is 1661 mm and 650 mm, respectively. The tabletop length is 2200 mm, which allows easy surgery of tall patients.

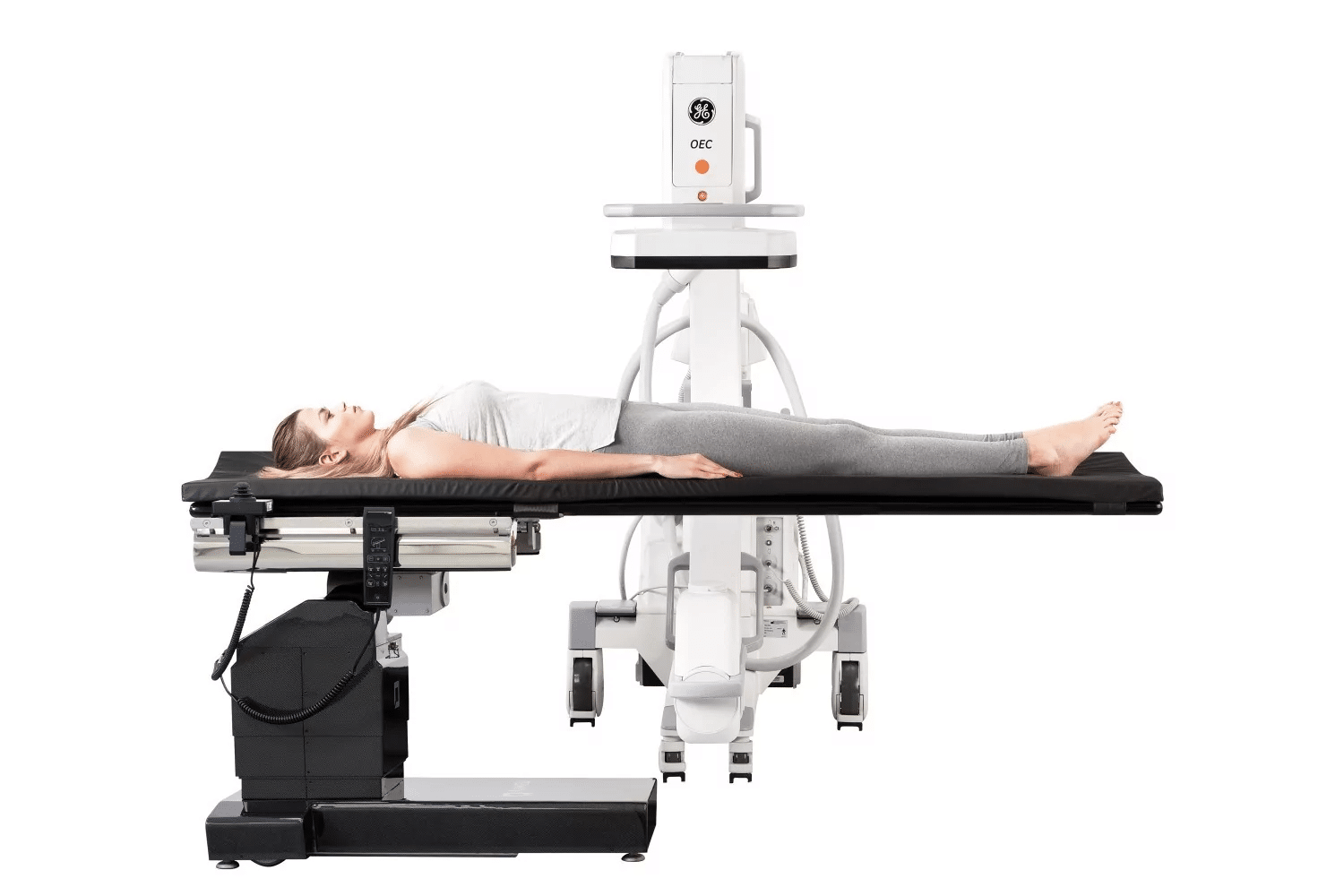

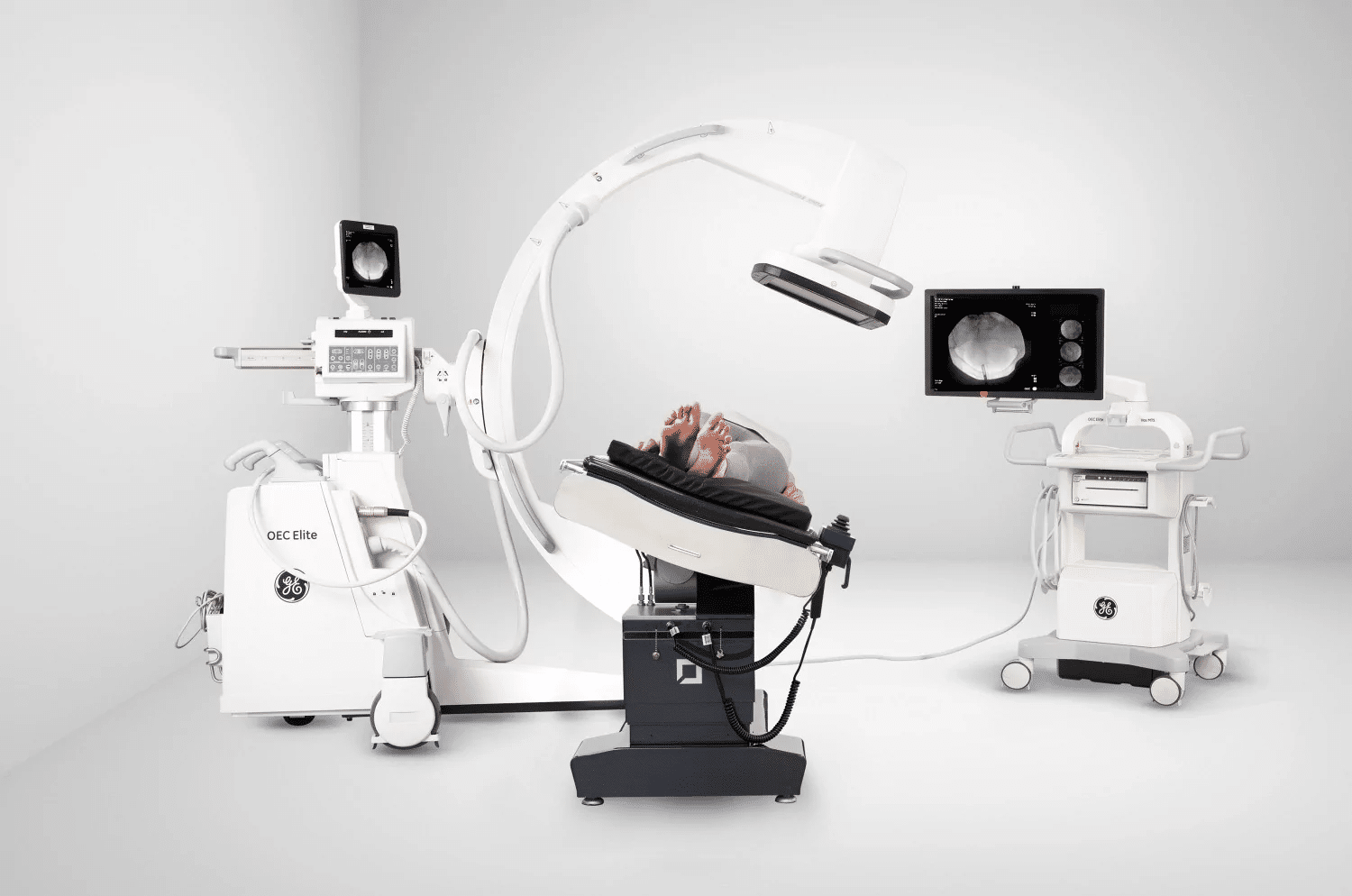

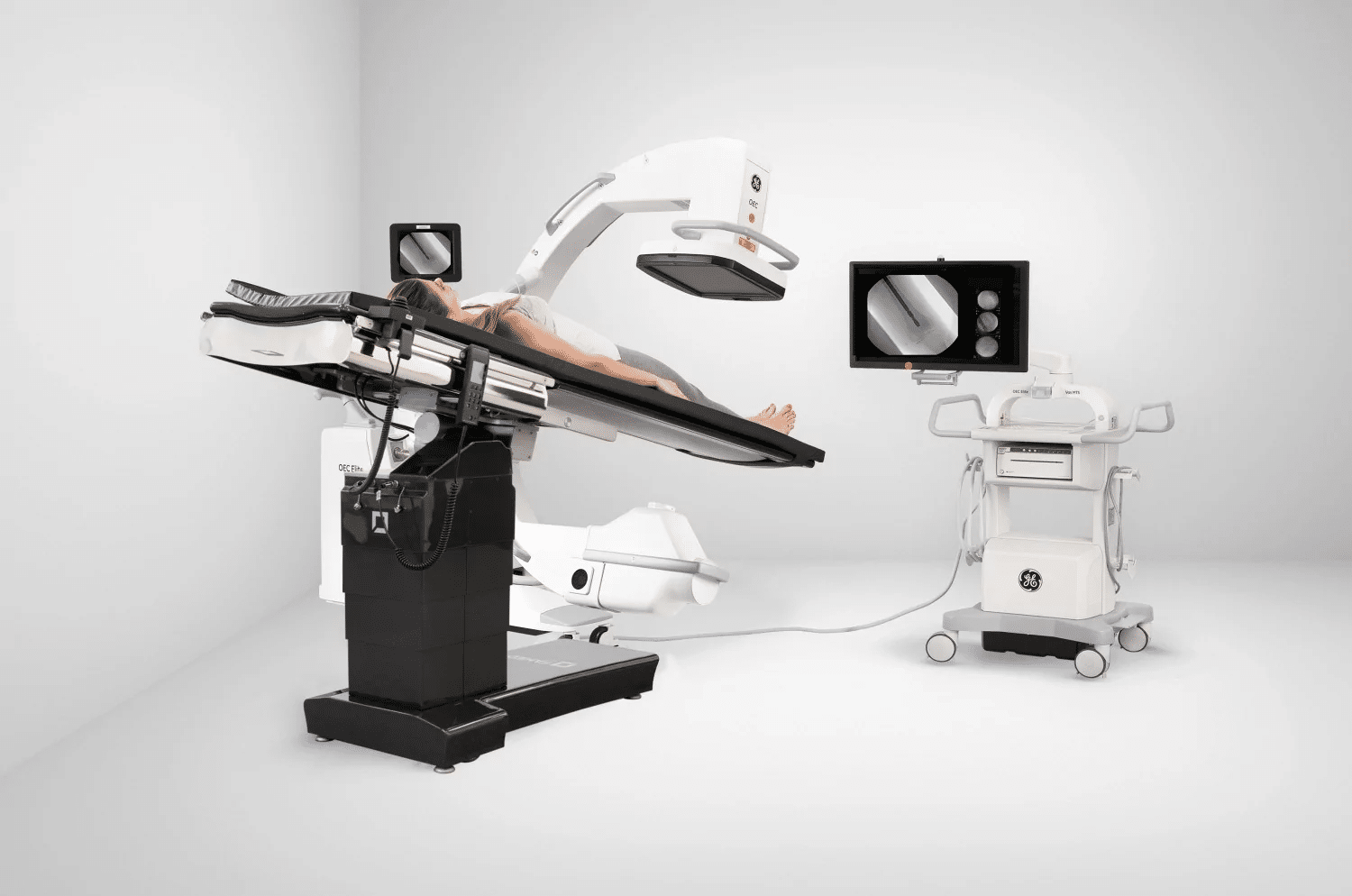

  Easy C-arm manouvrability	The low base, slim and profiled tabletop, absence of metal elements in its construction, high sliding parameters, and comfortable joystick ensure easy cooperation with the C-arm on the length of 1661 mm on the side of the patient’s head and 650 mm on the side of the legs.
  Joystick controls	The joystick allows the precise movement of the tabletop in any direction, as well as the possibility to zero the table position. Accidental movement of the tabletop is eliminated thanks to a double mechanism to activate the joystick function. The joystick can be mounted on the side of the tabletop.
  Profiled base	The T-shaped table base has been designed to combine three features essential in the operating room: stability, ergonomics, and ease of disinfection.
  InfiniMove accessory mounting	Additional table accessories can be mounted on two long bars on both sides of the tabletop above the column.
  Mattress included	The table is equipped with a 40mm thick, anti-static, pressure-relieving mattress. The mattress is resistant to disinfectants and is held in place by a fastening belt system.
  fCharge battery	The built-in battery allows you to safely perform treatments without having a permanent power connection, and the large battery capacity allows for less frequent charging.

• Specifications

  Length	2200 mm
  Width (overall)	649 mm
  Minimum height	760 mm
  Maximum height	1160 mm
  Trendelenburg position	16°
  Reverse-Trendelenburg position	25°
  Maximum load	180/230 kg
