PatientFlow Gynaecology Hospital Stretcher

Product Information

• Description

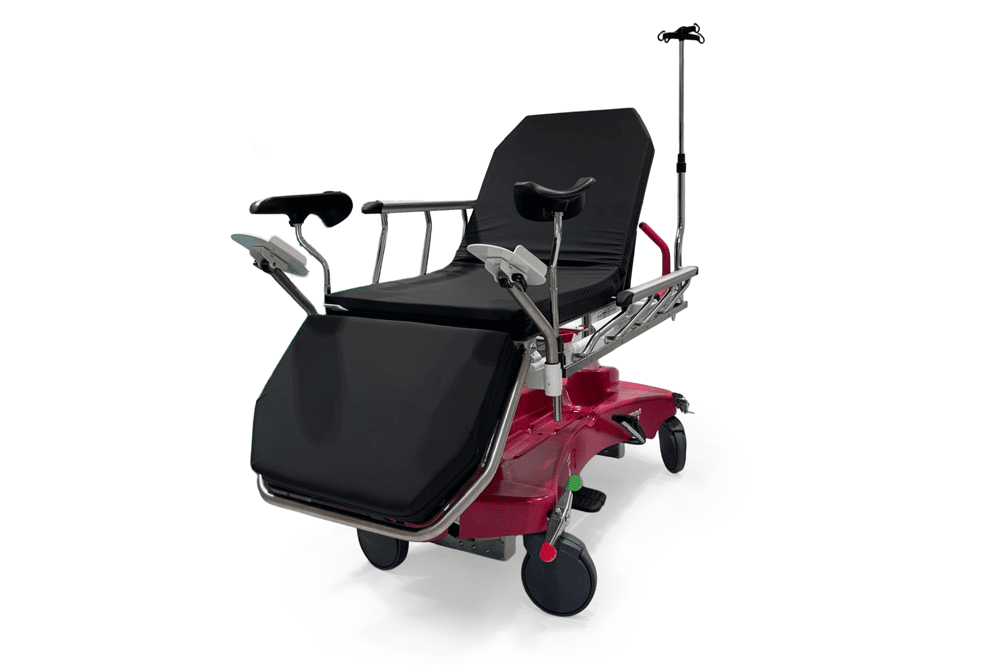

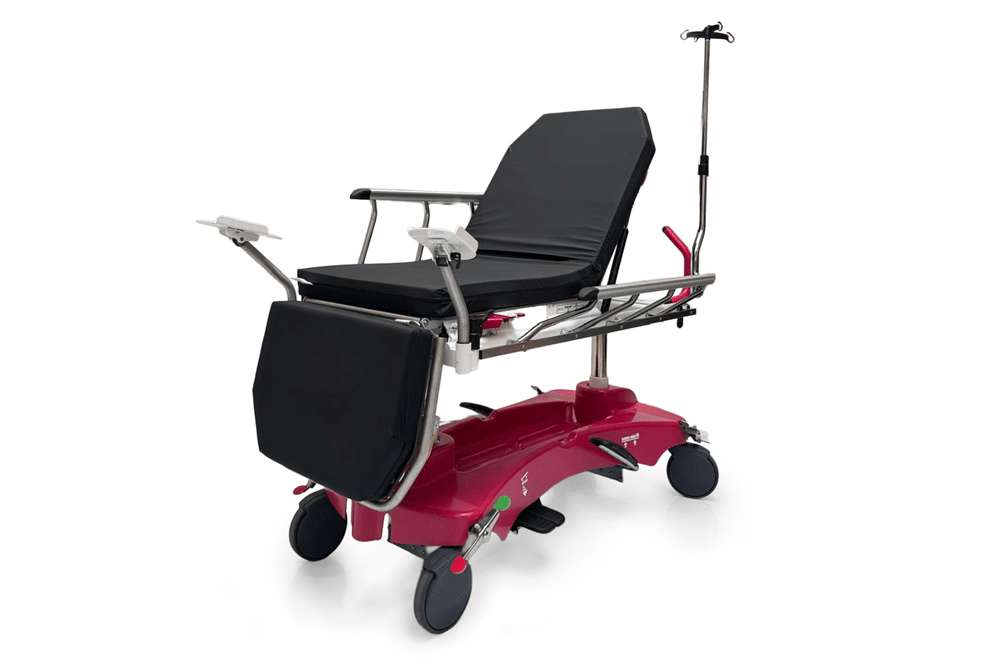

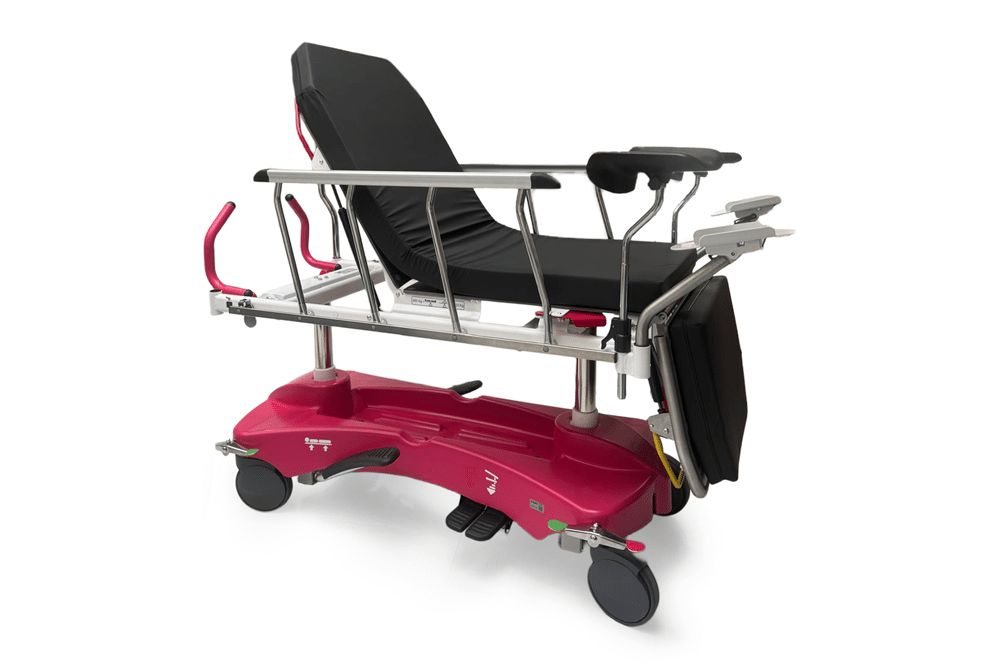

  Purpose-built for gynaecological & urological procedures, the PatientFlow Gynae features a foldaway foot section, leg stirrups & foot supports. This trolley is lightweight and easy to manoeuvre in busy departments, and an inbuilt Universal DIN rail allows for easy installation of other accessories, such as armboards & supports.

  The 5th wheel under the centre of the trolley means that the PatientFlow is very manoeuvrable – especially important in small, sometimes crowded departments.

  Available in both hydraulic and electric hybrid electric versions; the Hydraulic version allows for smooth movements across all functions, whilst the Hybrid Electric version of the PatientFlow has powered height adjustment, whilst the non-essential functions are gas-spring assisted  – maximising battery capacity.

  The PatientFlow Gynae is now available to purchase via a leasing agreement – get in touch here.

  The PatientFlow Gynae is available to trial and purchase from Felgains – get in touch here.

  PatientFlow is the registered UK trademark for the PAM Mobility Cloud Stretcher.

• Technical Specifications

  Safe Working Load	320kg
  Max patient weight	260kg
  Min platform height	550mm
  Max platform height	850mm
  Patient platform dimensions	700 x 1950 mm
  Overall stretcher dimensions	870 x 2020 mm
  Warranty	2 Year
  Fifth wheel	Yes
  Expected service life	10 years
  X-Ray tunnel available	No
  Trendelenburg range	-18 – 18°
  Backrest angle	0 – 90°
  Wheels	Ø 200 mm single rollers
