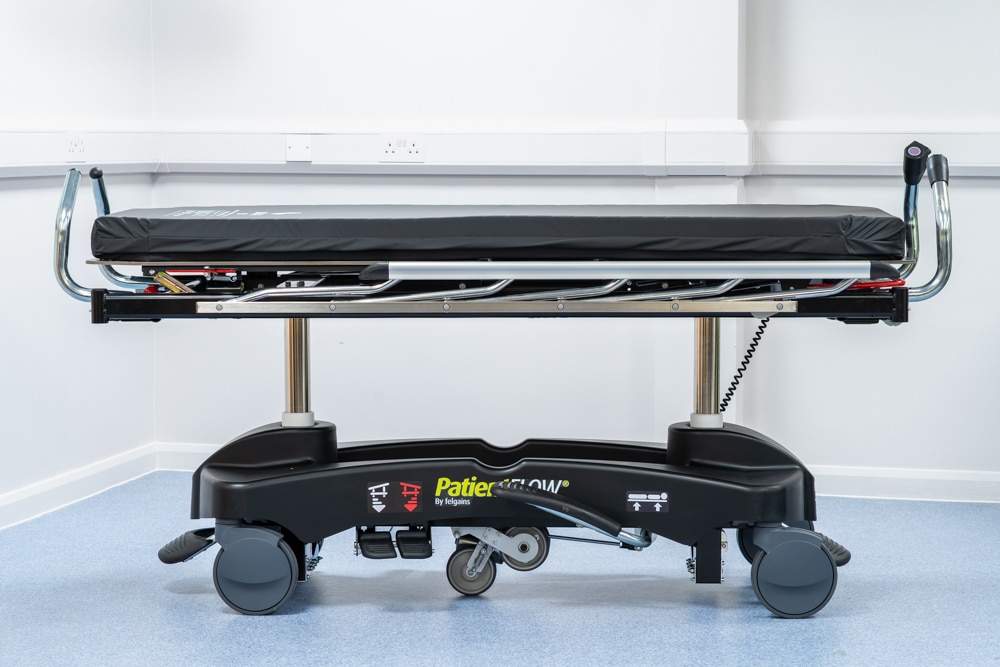

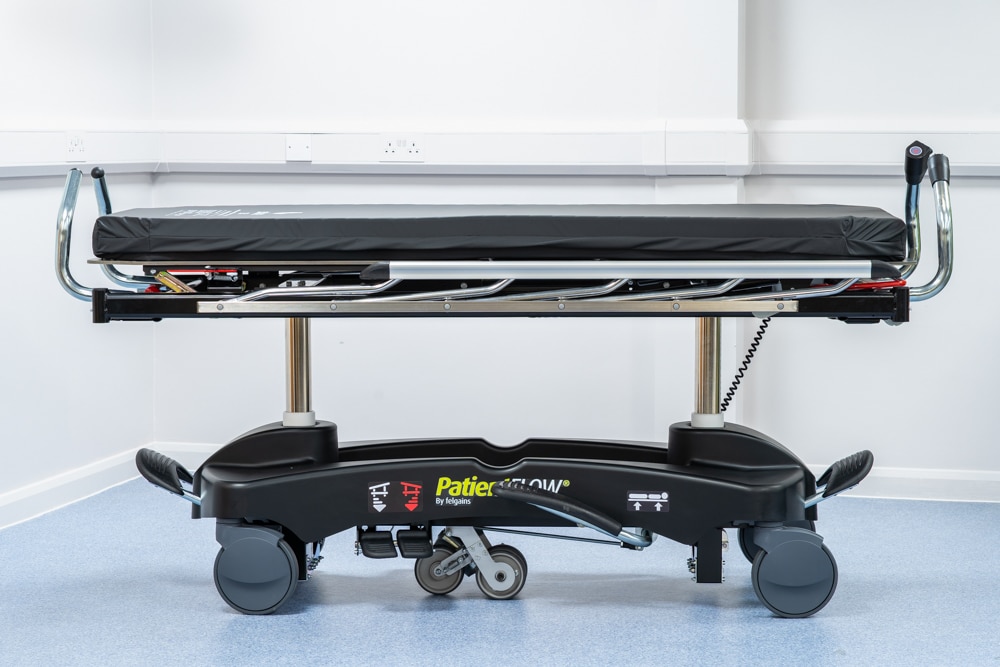

PatientFlow PowerDrive Patient Transport Stretcher

Product Information

• Description

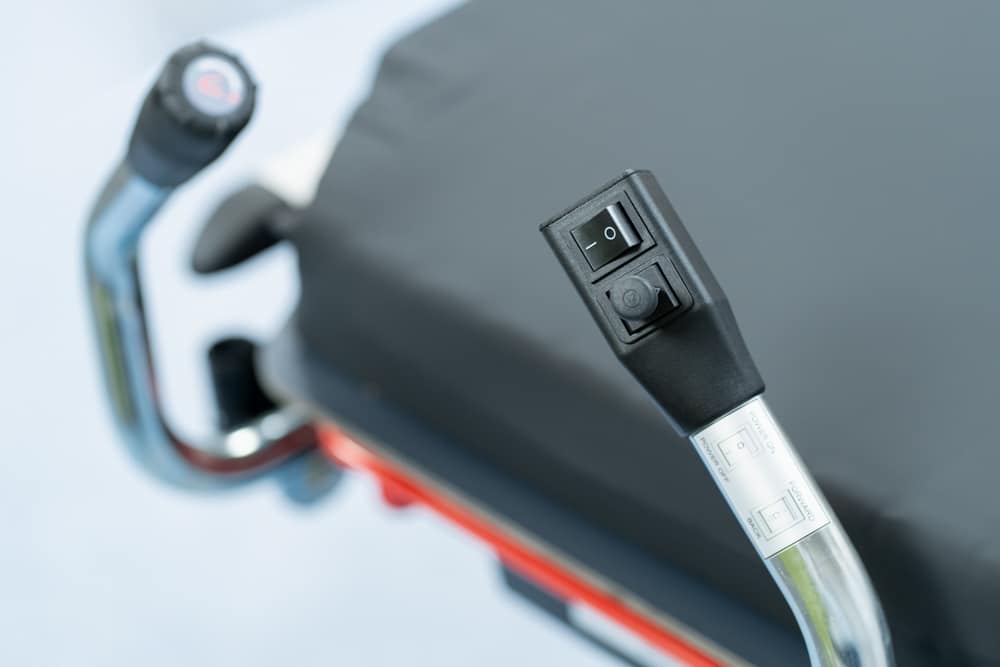

  The PatientFlow PowerDrive is a hospital stretcher for emergency departments and any areas in hospitals where patients are transported. Featuring a unique PowerDrive system with a powered drive wheel, patients can be transported effortlessly at the touch of a button.

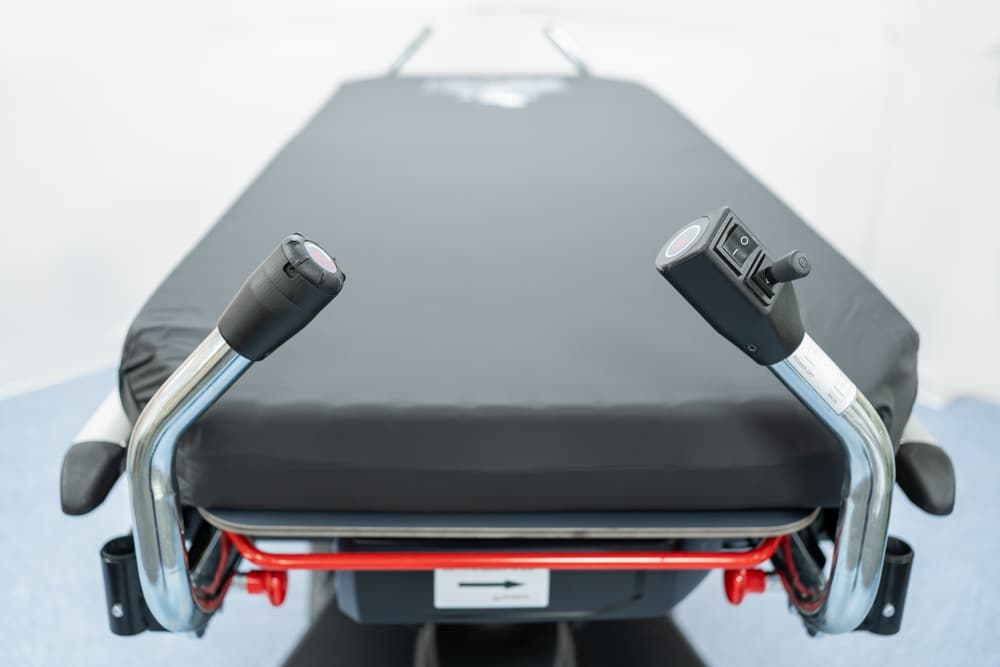

  This PatientFlow PowerDrive is lightweight and easy to manoeuvre, yet robustly built to withstand heavy use all day, every day. The trolley features heavy-duty IV poles that double up as push handles, giving you options on pushing positions for excellent ergonomics.

  The design of the PatientFlow accommodates the requirements of a wide range of professionals, from nurses and doctors to radiographers and physiotherapists.

  As well as the PowerDrive wheel, the PatientFlow has a 5th wheel under the centre of the trolley, making it very manoeuvrable, which is especially important in sometimes crowded emergency departments.

  The PatientFlow PowerDrive is available to purchase via a leasing agreement – get in touch here.

  The PatientFlow PowerDrive is available to trial and purchase from Felgains – get in touch here.

• Technical Specifications

  Safe Working Load	320kg
  Max patient weight	260kg
  Min platform height (2 & 4 section platform version)	550mm
  Max platform height (2 & 4 section platform version)	850mm
  Min platform height (X-Ray platform version)	650mm
  Max platform height (X-Ray platform version)	915mm
  Patient platform dimensions (standard)	700 x 1950mm
  Hydraulic option	Yes
  Electric option	Yes
  Level siderails	Yes
  Auto chair position	No
  Warranty	2 Year
  Single or double column	Double
  Fifth wheel	Yes
  Charging system	Retractable cable
  Expected service life	10 years
  Cylinder holders	Yes
  Battery	Yes
  X Ray cassette holder	Optional
  Lock-out function	No
  Urine bag hooks	Yes
  Folding IV pole	Optional
  Backrest/Knee break	Yes, both
  X-Ray tunnel available	Yes
  Trendelenburg range	-18 – 18°
  Backrest angle	0 – 90°
  Kneebrake angle	0 – 20° (only for 4-section platform version)
  Wheels	Ø 200 mm single rollers
