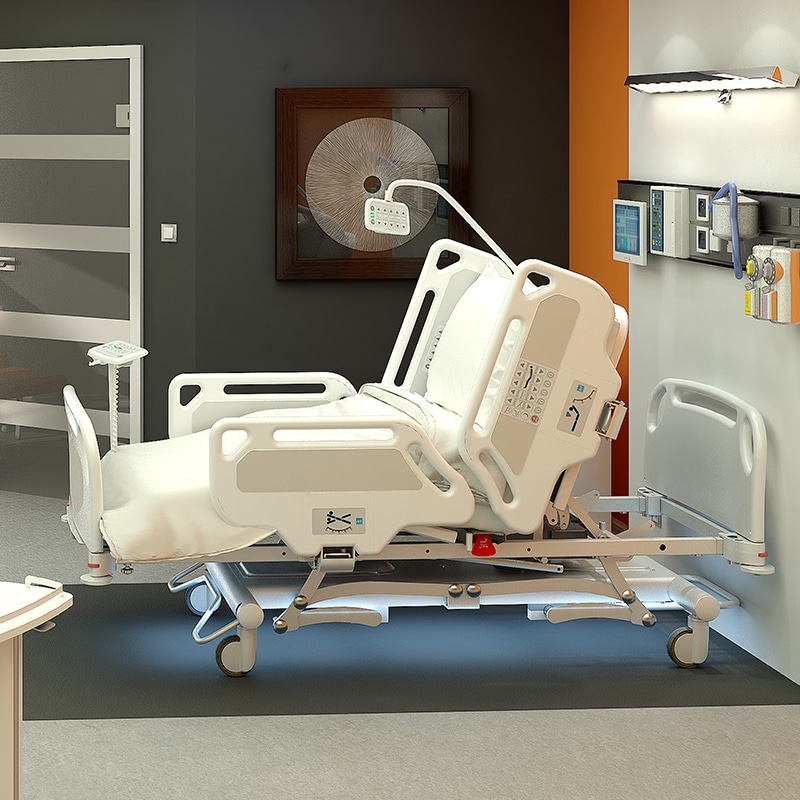

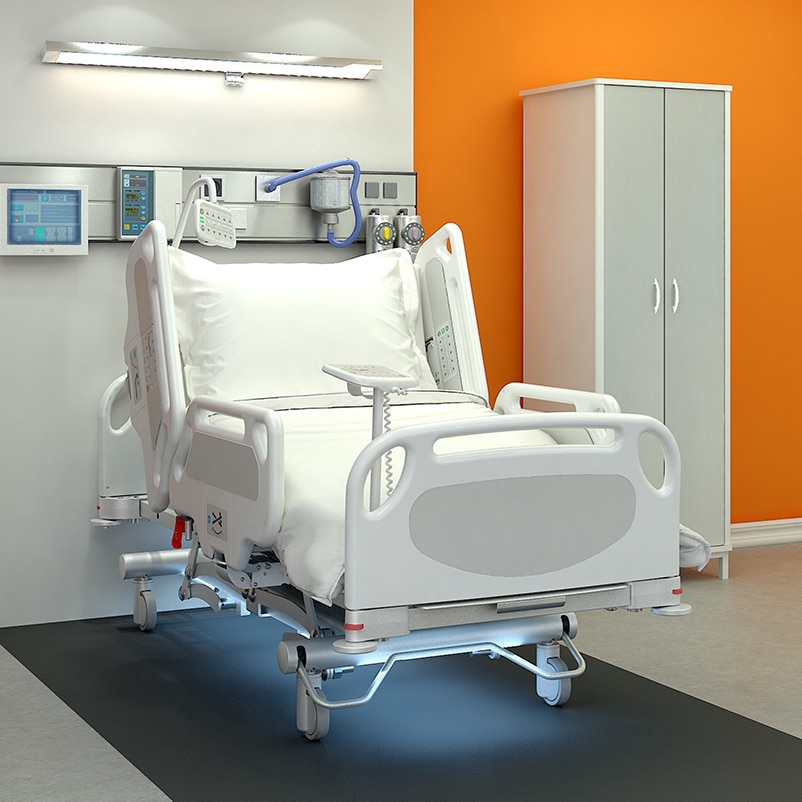

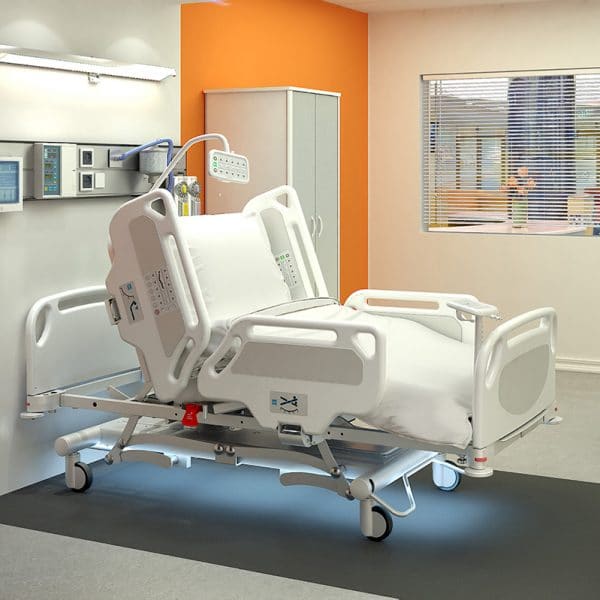

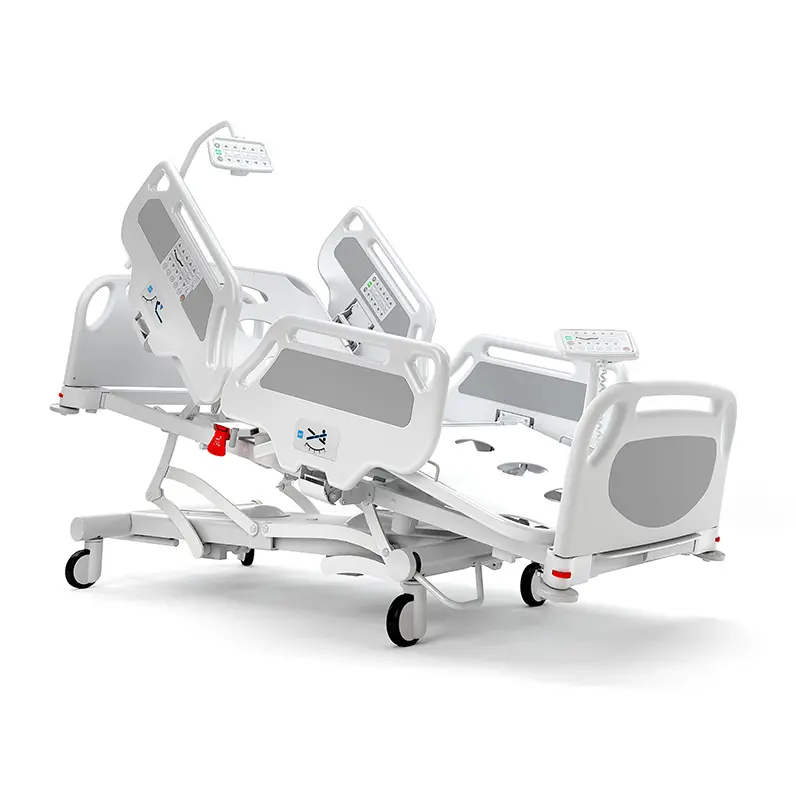

Actilit Acute Profiling Hospital Bed

Product Information

• Description

  The Actilit is an acute profiling hospital bed designed for comfort and ease for both the user and the caregiver in acute hospital environments. Two-part siderails provide better safety and freedom of movement on this hospital bed, and they are spring-loaded for easy raising and lowering. Simply put both bed rails up for full protection, or put just the headrail up to allow the user to get in and out of bed themselves.

  The Actilit profiling hospital bed is designed with smooth, easily accessible surfaces and limited contact points to prevent infection. This acute hospital bed comes with two remote control panels – one for the user and one for the caregiver – for easy operation of the bed functions for both the bed user and the caregiver.

  The Actilit hospital bed has a rod-controlled lifting system for reliable and straightforward height adjustment, and to create Trendelenburg and Anti-Trendelenburg positions. Also – in conjunction with the profiling action – for creating Fowler and Armchair positions. Four double-roller wheels and central braking allow for easy manoeuvring and placement.

• Bed Position Options

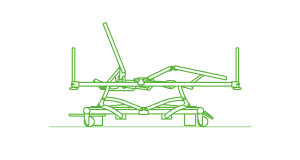

  Minimum Height Mattress platform lowers to just 450mm

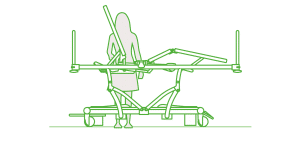

  Maximum Height Mattress platform rises to 760mm for care tasks

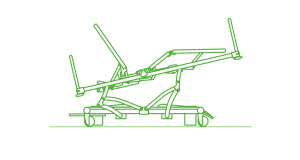

  Trendelenburg Position For improved respiration. Can be profiled at this angle

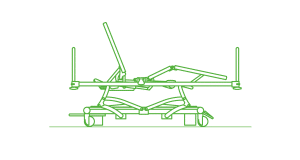

  Fowler Position To relieve pressure points during prolonged bed rest

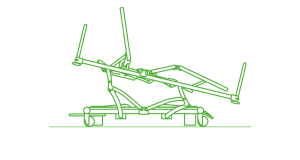

  Armchair Position To relieve pressure points and assist patient wellbeing

• Technical Specifications

  Minimum Height	450mm
  Maximum Height	765mm
  Maximum Trendelenburg / Anti-Trendelenburg	15°
  Maximum Backrest Adjustment	68°
  Weight	120kg
  Safe Working Load	220kg
  IP Rating	IPX4
  Mattress Platform Dimensions	2000 x 900 mm

• Key Features Diagram




  Fixed Headboard Option Available




  4 Hand Control Options & Reading Light




  Auto Regression




  Slide-out Linen Rack




  Central Braking




  Backrest Angle Indicator




  Mattress Platform Angle Indicator
