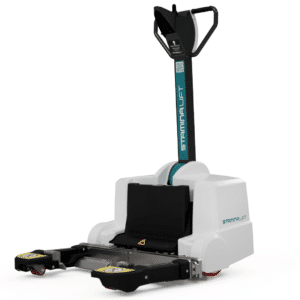

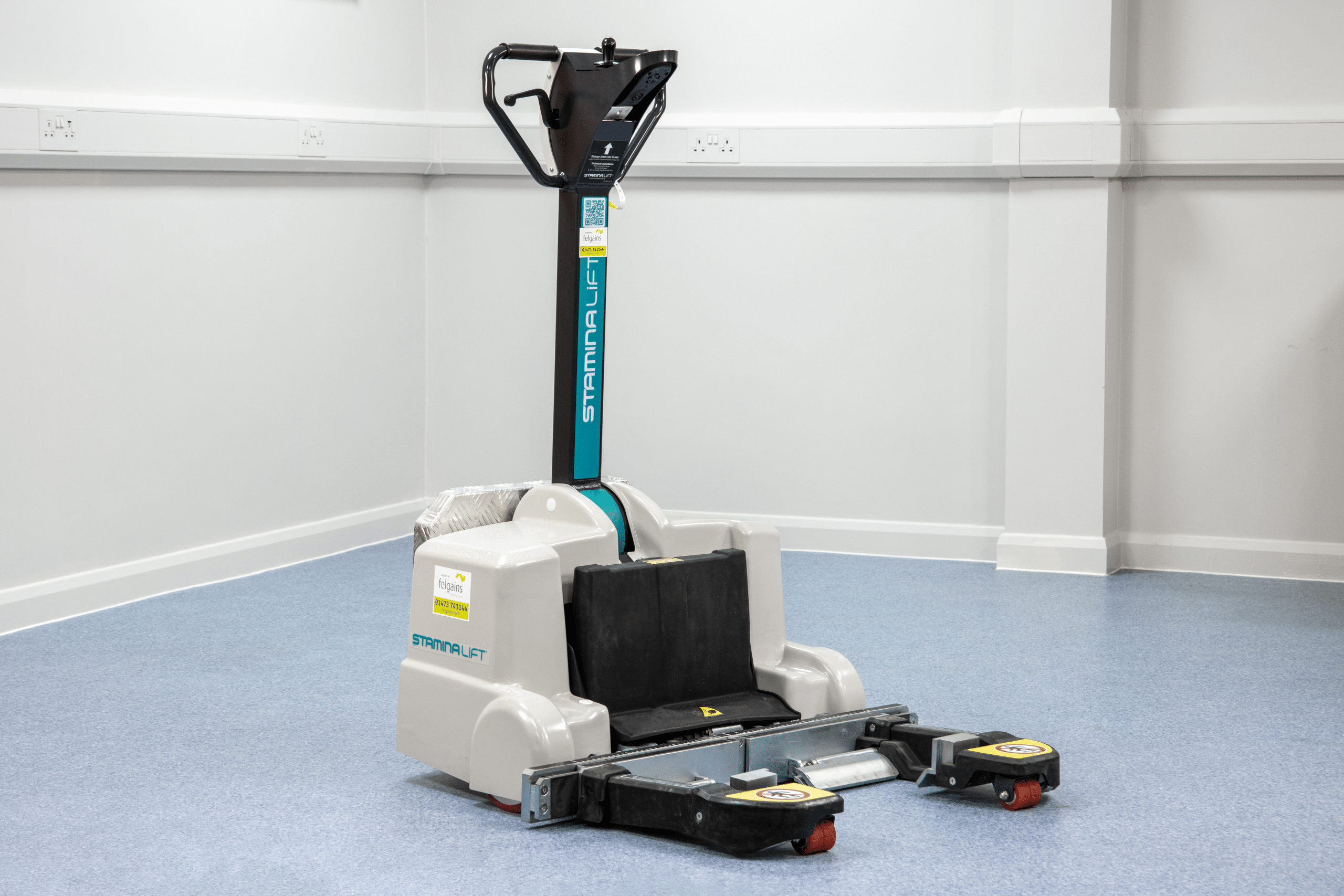

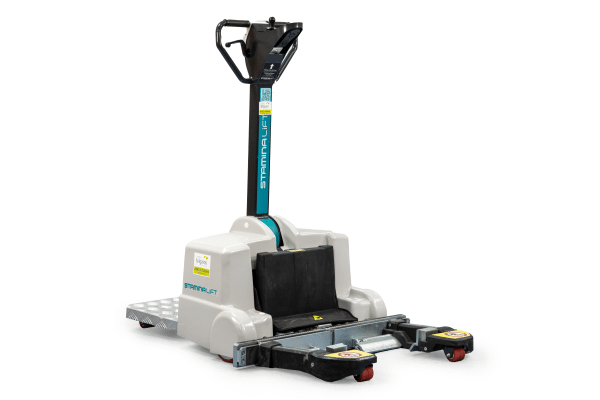

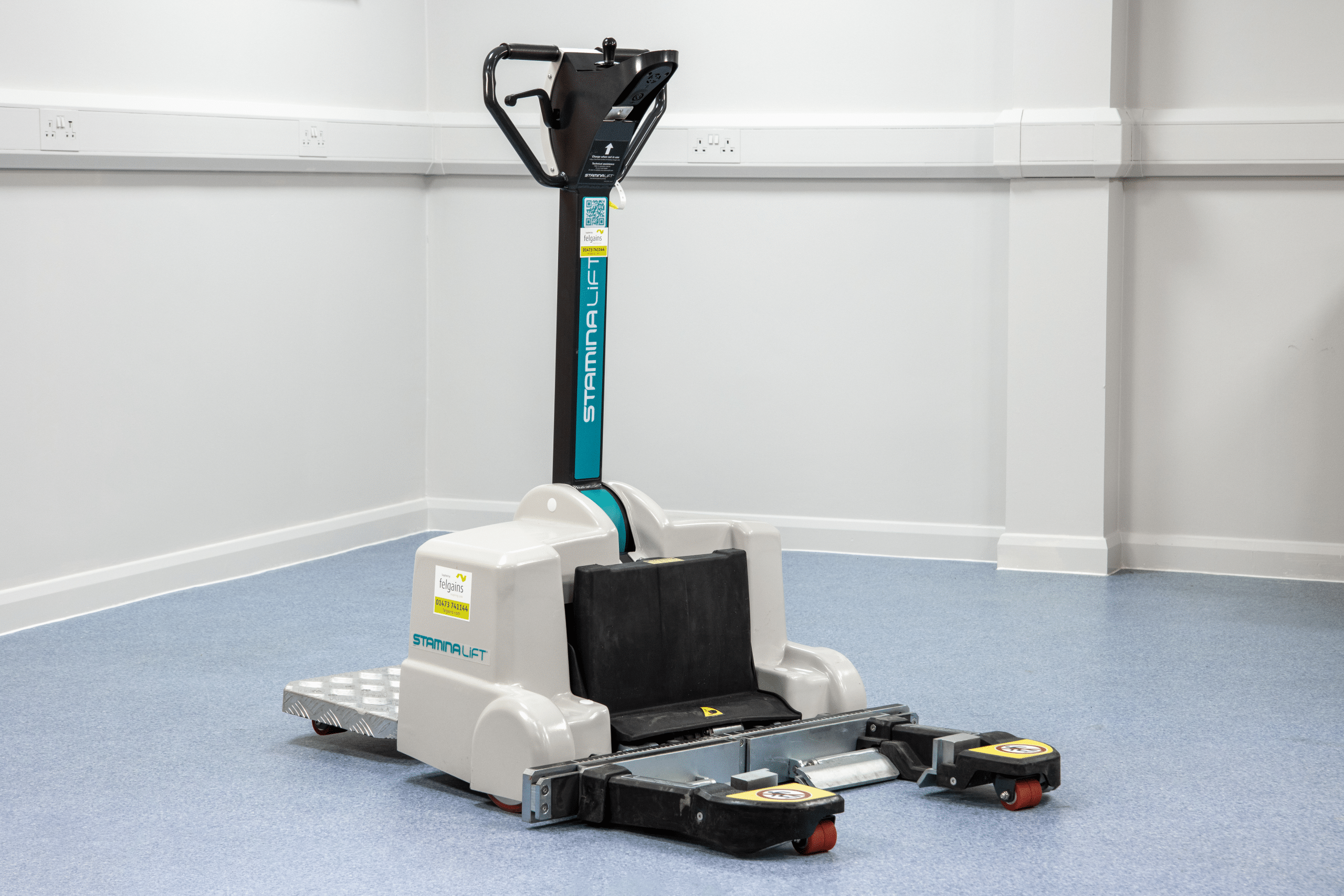

Staminalift TS5000 Hospital Bed and Stretcher Mover

Product Information

• Description

  With unmatched compatibility with beds and stretchers, the Staminalift TS5000 transforms the laborious task of pushing beds and stretchers into a controlled and easy operation, removing the risk of back injury and improving the work environment for your portering staff.

  Key benefits:

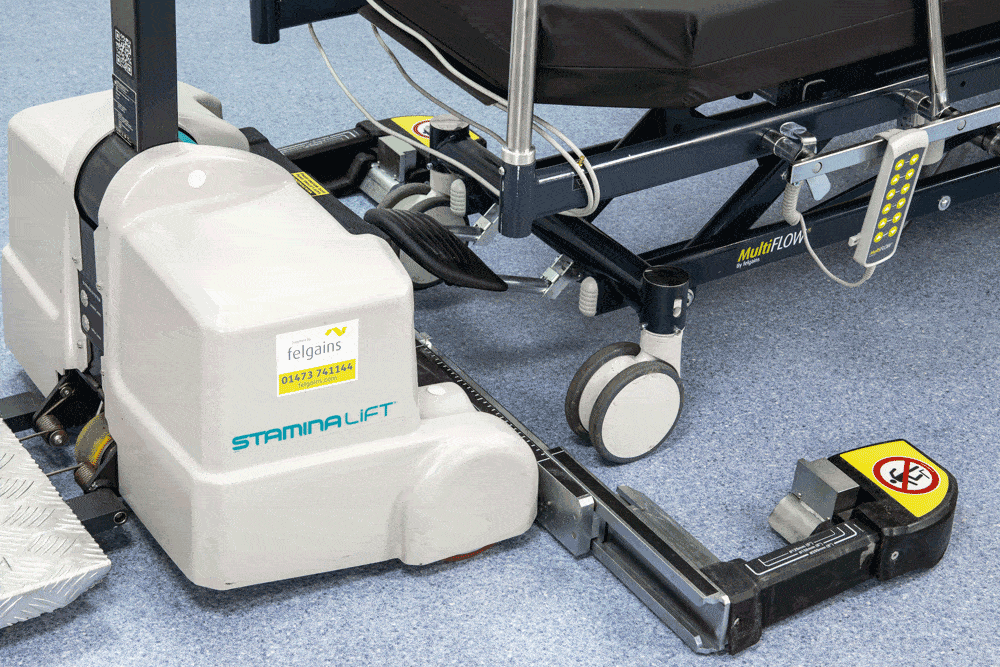

  • Unmatched bed and stretcher compatibility – the TS5000’s jaw mechanism allows the bed mover to be attached to wheel widths from 550mm to 890mm, and wheel diameters of 125mm to 200mm, catering to the vast majority of beds and stretchers on the market today
  • Fingertip joystick control – requires minimal muscle activation and an ergonomically correct operation, eliminating the muscular strain and injury risk associated with manual bed-pushing
  • 360-degree turning radius – for easy manoeuvring through even the most challenging hospital corridors and doorways
  • Compact design – able to fit into standard hospital lifts whilst still attached to a bed or stretcher
  • 3 drive speed programs to choose from – to suit new users up to experts​
  • Keyless control with safety lockout – to prevent unauthorised use​

  Interested in seeing how the Staminalift could help your Trust? The Staminalift is available to demo or trial – contact our team to get started.

  The Staminalift is now available to purchase via a leasing agreement – get in touch here.

• View the TS5000 in 3D



• Technical Specifications

  Max load capacity:	600 kg
  Max operating gradient:	7 degrees
  Weight:	160 kg
  Dimensions in use (L x W x H):	780mm x 925mm x 1220mm
  Batteries:	Sealed maintenance-free GEL batteries
  Recharge:	Nightly recharge is recommended using supplied automatic charger
  Warning device:	Horn (warning device) on control unit
  Controls:	Programmable, ergonomic joystick for control of direction, speed and jaw movement
  Safety features:	Automatic brakes / Emergency Stop Button
  	Emergency Jaw release – Allows override of lowering mechanism
  	Emergency Brake release  – Allows override of brake mechanism

• Optional Accessories

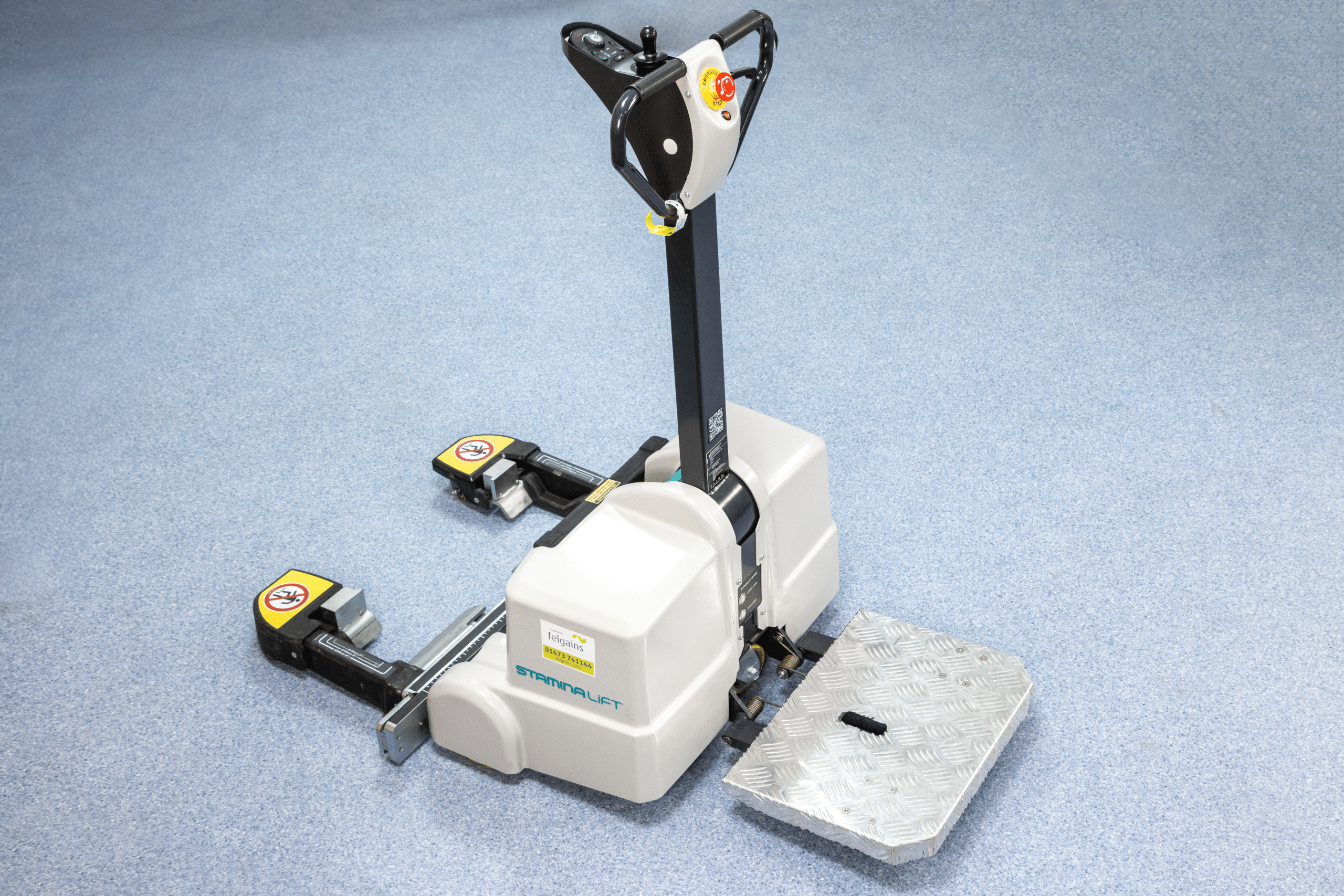

  Ride-on platform	Allows portering staff to ride rather than having to walk behind the machine. When not in use, the platform can be folded up.
  Extra wide jaws	In the unlikely event that the standard jaws do not fit a bed or trolley, extended jaws are available for the TS5000 to accommodate wider products.
