Raizer M Manual Lifting Chair

Product Information

• Description

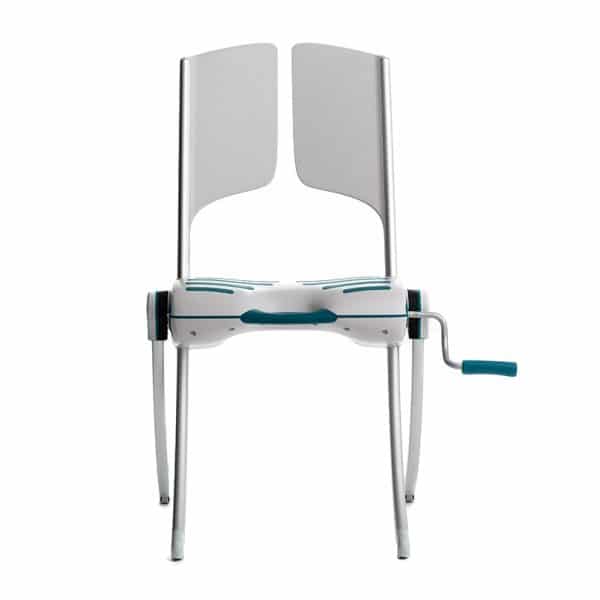

  The Raizer M is a manual lifting chair that has been designed to lift a fallen person from the floor at home. The Raizer Manual is an easy-to-use manually operated version of the electronic Raizer II.

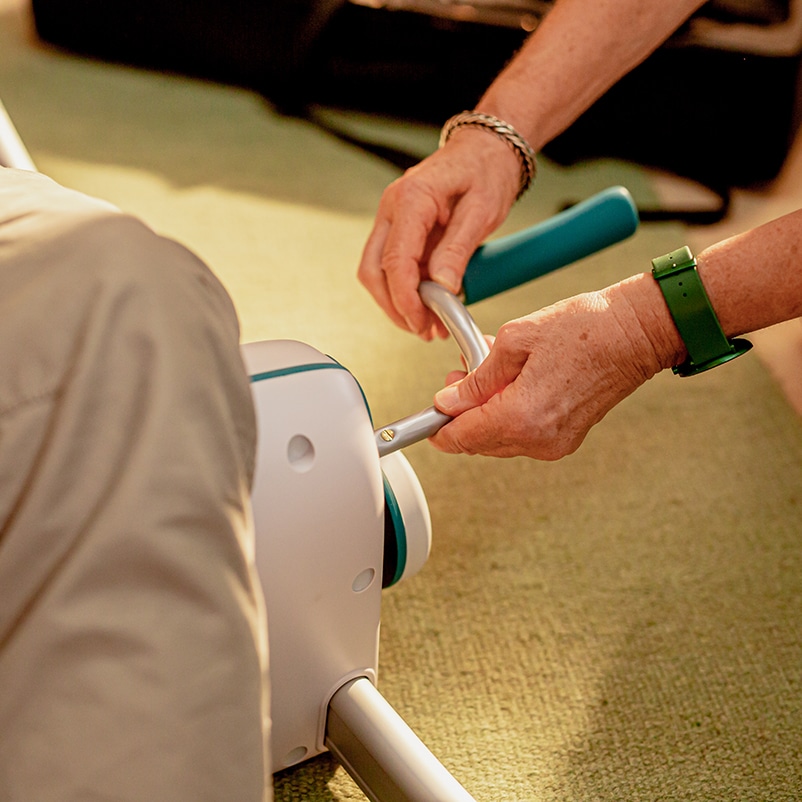

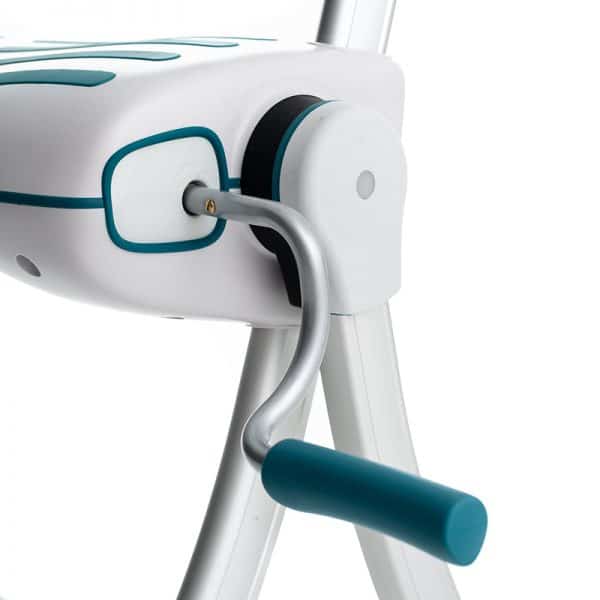

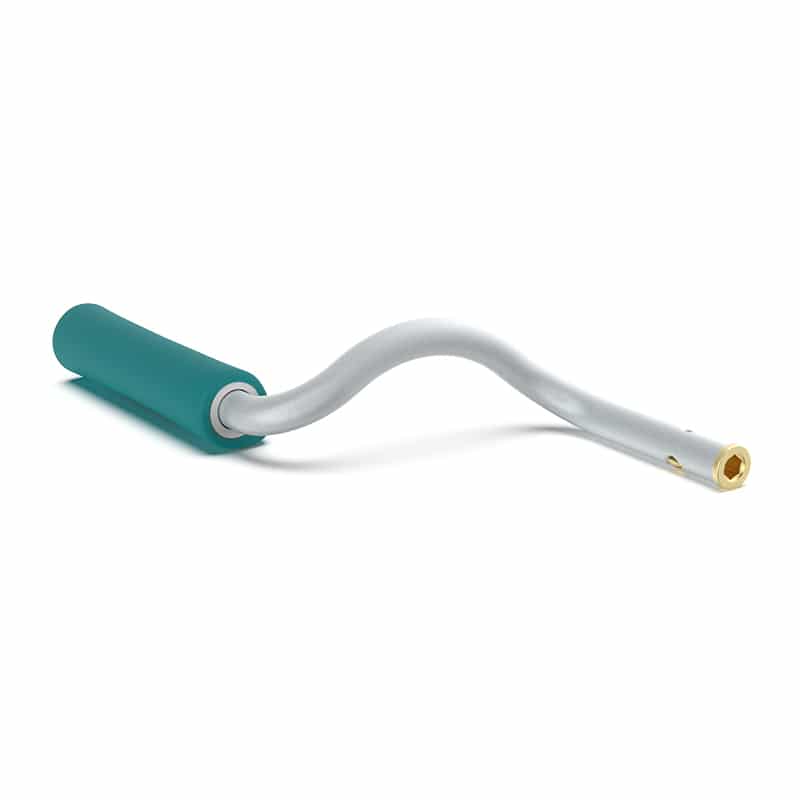

  The lifting operation is powered by a manual crank handle that slots into the side of the seating unit. Once assembled around the fallen person, turning the crank handle lifts the fallen person from a horizontal position to a seated or perched position ready to stand in 1-5 minutes.

  The Raizer M means that you can now lift a fallen person at home with ease, removing the need to call an ambulance when a loved one falls and is uninjured – avoiding the risk of going to hospital unnecessarily. This gives you peace of mind and the confidence to go about your daily life without the worry that you or your loved one might fall and be stuck on the floor fir a long time.

  The Raizer M is geared so that turning the crank is manageable for almost anyone, whilst lifting the fallen person from the floor in less than 5 minutes. When you stop turning the crank, the Raizer M will stop and lock still in that position. This means you can pause as many times as you like during the lift for a breather, to reassure the fallen person, or even get them a cuppa.

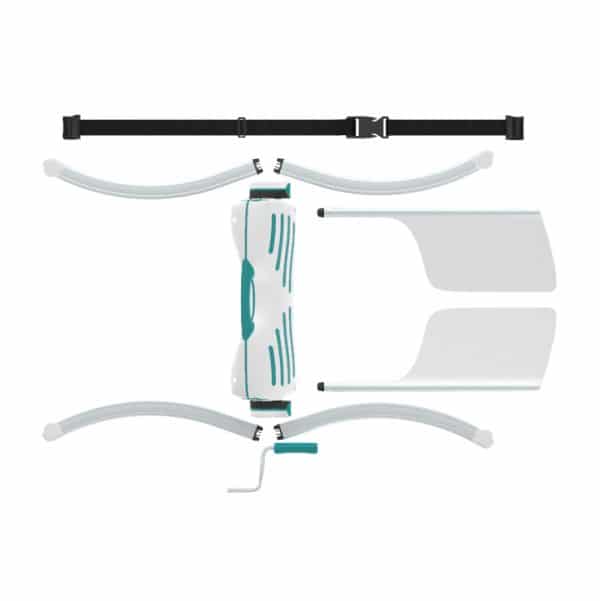

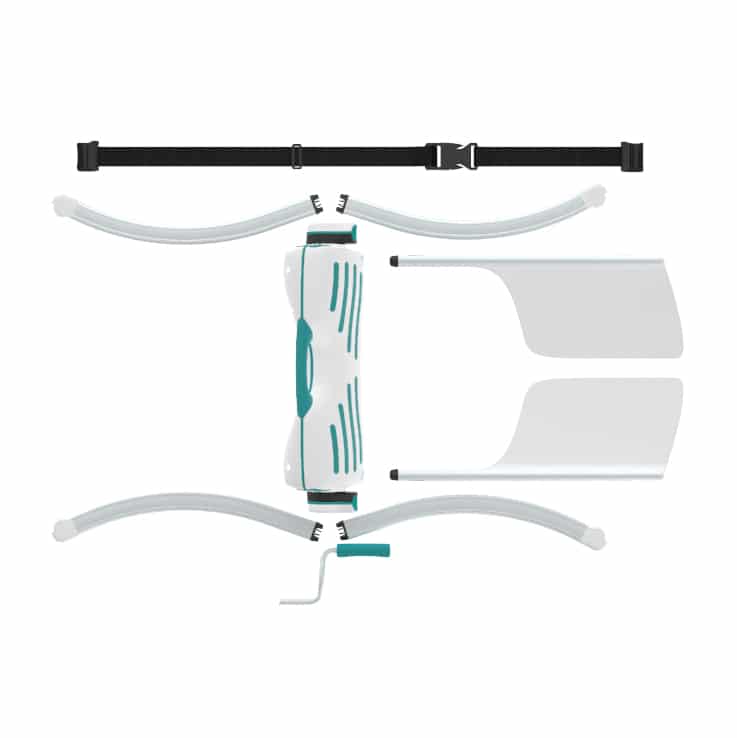

  The Raizer M has 9 parts: the seat unit; 1 crank handle; 2 identical backrests; 4 identical lifting arms; and a seatbelt. This makes it is impossible to assemble the Raizer M incorrectly, with each component giving a loud solid click when inserted correctly.

  Whilst the Raizer II remains the premier emergency lifting chair, the Raizer manual is perfect for light use in domestic environments when the Raizer II is not cost-effective. To find out more about the differences between the Raizer M and the Raizer II, please check out our product comparison guide.

  You can buy the Raizer M lifting chair in any of the following 3 packages;

  • Raizer M (on its own)
  • Raizer M with Headrest

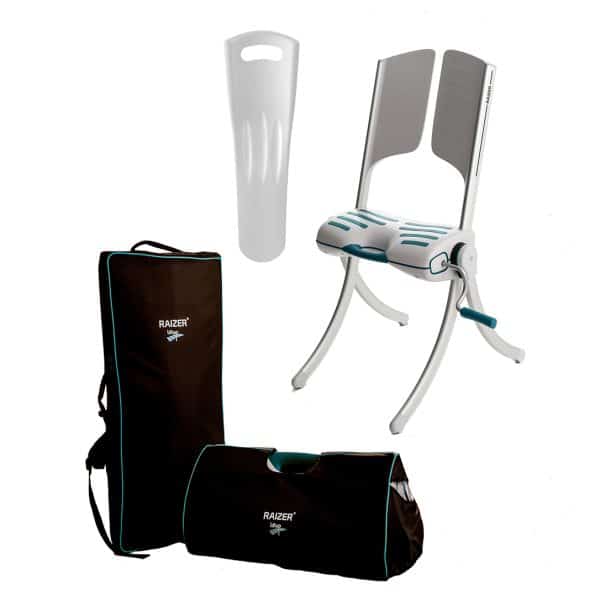

  • Raizer M with Headrest and Carry Bag Kit

  If you want to support the head and neck of the fallen person before, during and after the lift, then we’d recommend selecting the package that includes the Raizer Headrest.

  The Raizer M is shipped in a cardboard box that contains the seat unit and an inner box for the components. If you want to keep your manual lifting chair clean and smart, we’d recommend selecting the option that includes the Raizer Carry Bag Kit as well as the headrest.

  For a video on how to assemble and use the Raizer M, pleased check out the ‘How to assemble the Raizer M’ tab below. And to find out what accessories are available, please take a look at the ‘Accessories’ tab below.

  Free Mainland UK delivery – please ensure you select this in the checkout.

• How to use the Raizer M

• Technical Specifications

  Operation	hand-operated by 1 person
  Lifting Cycle Time	1-5 minutes
  Dimensions (LxWxH) – standing	540 x 880 x 1274 mm

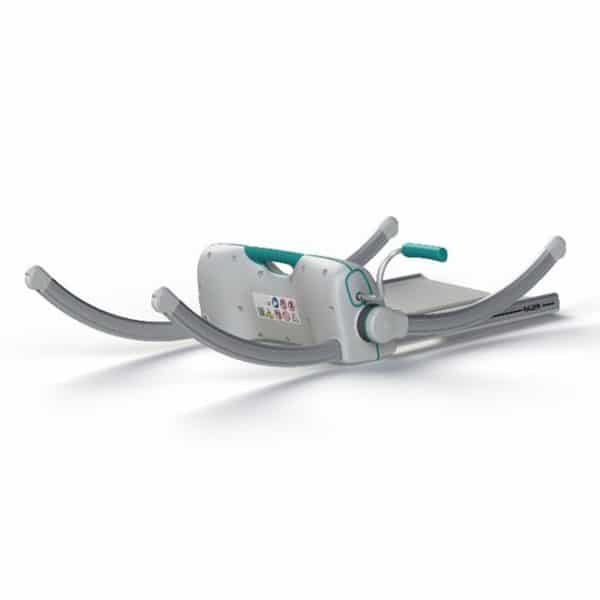

  Dimensions (LxWxH) – lying	1322 x 880 x 277 mm
  Maximum Lifting Capacity (SWL)	150kg / 24st
  Weight – seat unit	7.2 kg
  Weight – components	5.2 kg
  Weight – total	12.4kg
  Maximum Usage Limit	1000 lifts over 5 years
  Seat Unit Material	Polycarbonate / ABS
  Backrest Material	Polycarbonate / ABS
  Lifting Arm Material	Aluminium



  The Raizer M is compliant with the following regulations;

  • MDD 93/42/EEC: Medical Device Directive Medical devices under class 1
  • EN/ISO 10535:2006: Hoist for the transfer of disabled persons
  • DS/EN 12182:2012: Assistive products for persons with disability –
    General requirements and test methods

• Raizer Accessories

  You can view and purchase this range of accessories here

  Raizer Headrest	Raizer Carry Bag Kit	Raizer Trolley
  Raizer Safety Belt	Raizer Disposable Hygiene Covers	Raizer Wall Bracket Kit

• Usage limits of the Raizer M

  Usage of the Raizer M outside private domestic environments

  Whilst the Raizer M is designed for occasional use by private individuals in their own home, it can be purchased by organisations provided that;

  • The Raizer M is serviced by Felgains every 12 months
  • The Raizer M does not exceed the stated usage limit of 1000 lifts over 5 years

  Please exercise caution and common sense. If you are intending to use the Raizer regularly, the Raizer II will be much better suited and a more viable option. If in doubt, please call us on 01473 741144.

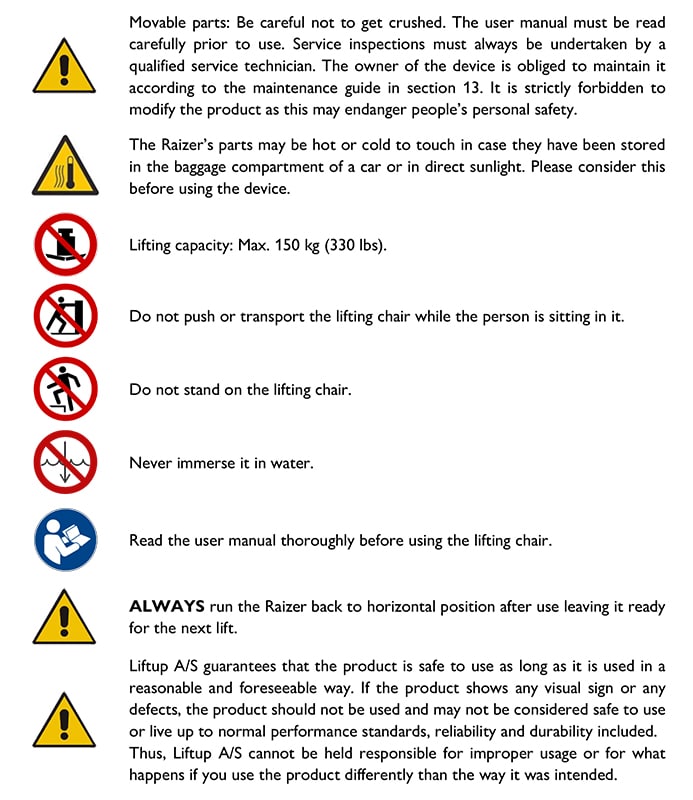

  Raizer M Usage Warnings
