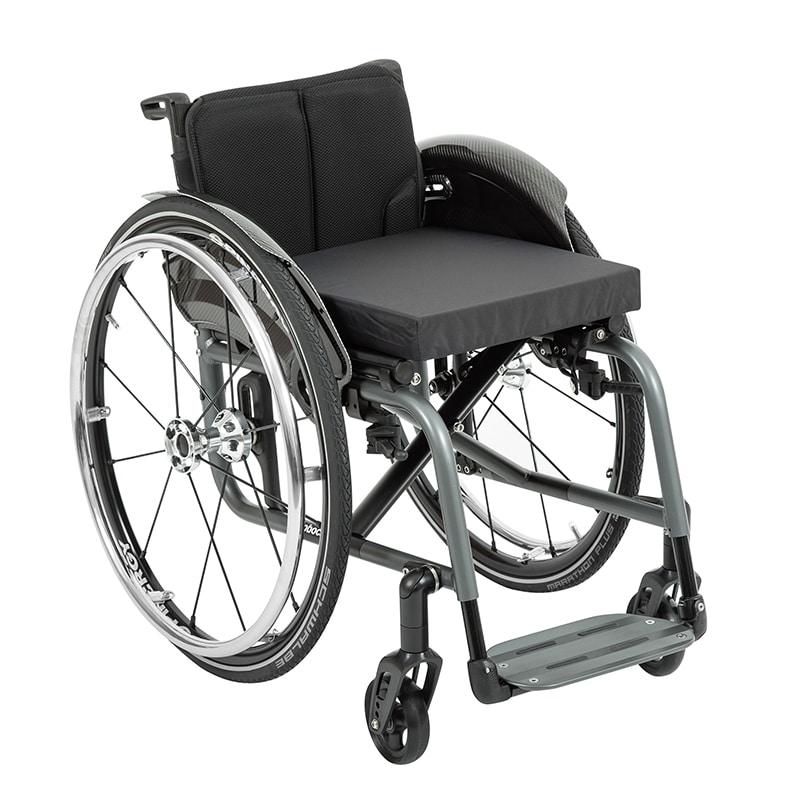

Ottobock Avantgarde 4 Folding Active Wheelchair

Product Information

• Description

  Ottobock Avantgarde DS: the travel companion

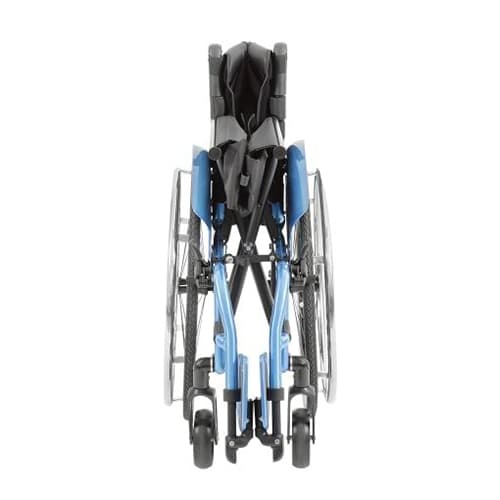

  Besides its low weight, the DS model with fixed leg support stands out for its extremely small folding size of 27 cm. At the same time, it offers a high level of stability for active users. Thanks to its compact design and the integrated leg support the Avantgarde DS features the lowest net weight within the Avantgarde series.

  Ottobock Avantgarde DV: the variable version

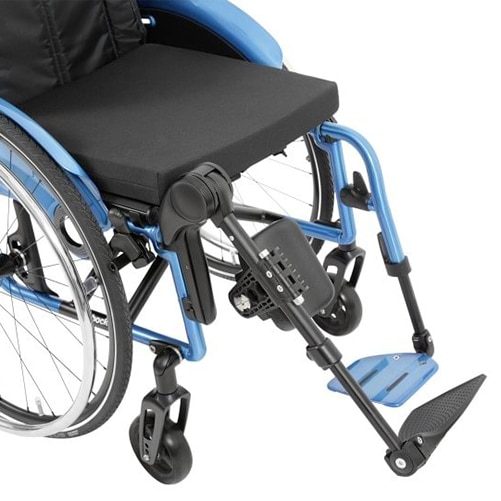

  The new Ottobock Avantgarde 4 DV impresses with its light weight, but this does not mean it‘s lost any of its proven advantages. Users like the new Avantgarde 4 DVs height-adjustable armrest, but also the option of driving up close to objects such as furniture, the barbeque or bath. The leg supports can be folded in for this purpose. It is also suitable for stroke patients when the leg supports are removed, which is done with a new type of lever.

  Ottobock Avantgarde CLT package: the lightest version

  For users who find that lightweight still isn‘t light enough, the additional option of a CLT package offers an ultralight version of the Ottobock Avantgarde 4 wheelchair for active use. More weight is saved here thanks to the single CLT cross brace, permanently welded components like the rear wheel adapter and push handles, lighter seat and back upholstery as well as carbon side panels and Infinity Ultralight rims. At just 8.7 kilogrammes, it’s capable of excelling in any everyday challenge.

• Features & Benefits

  • Rear wheel adaptor with double screw clamps on upper and lower tube note only allows for a high                 degree of stability, but also for 84 rear wheel positions for maximum adaptation

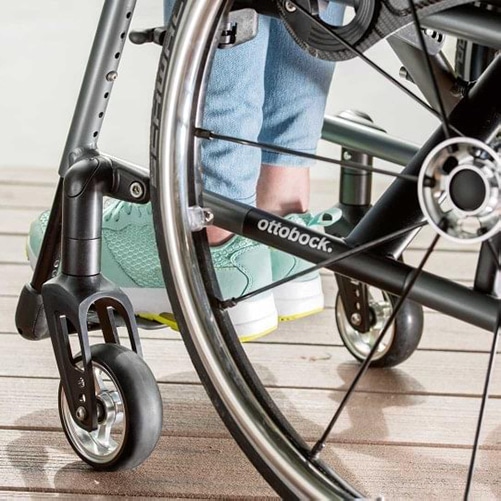

  • Adjustable in fixed steps, the front wheel adapter ensures the exact positioning of the front wheels for          excellent directional stability

  • A handy back bag is integrated into the back upholstery with a magnetic lock, ideal for storing small              items
  • New short push handles are optimised for low weight
  • Quick-release rear wheels allow easier transfers in and out of the car
  • Tension adjustable back upholstery is included as standard for adaptable support

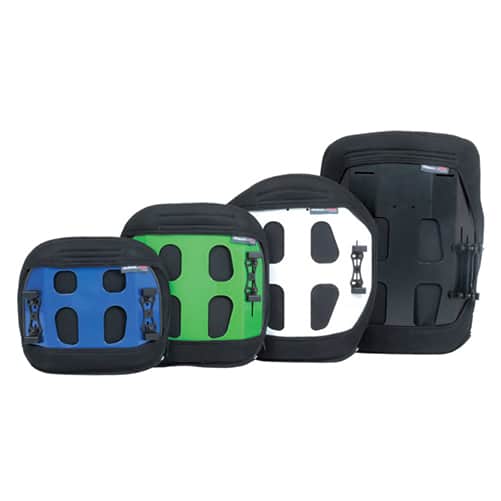

  • Compatible with a range of postural seating including Baxx backrests for optimum positioning and                pressure relief
  • Crash tested in accordance with ISO 7176-19, so you can use it as a transport seat in your vehicle

• Options*

  • Angle adjustable or welded backrest
  • 2cm front frame off set
  • 9 front castor styles
  • 3 drive wheel sizes
  • 5 rear tyre styles
  • 9 drive wheel rim styles including drum brake and one-arm drive
  • 5 push handles styles including fold-down
  • 9 hand rim styles
  • 5 side panels styles including desk armrests
  • 6 brake styles
  • 16 frame colours

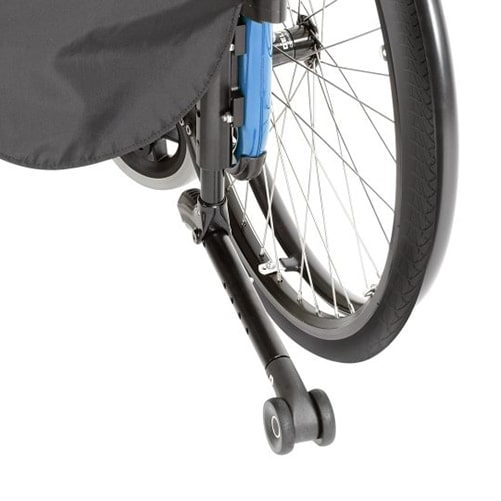

  • Anti-tippers
  • Tipping aid
  • Transport wheels
  • Cane holder
  • Shock absorbers
  • Ultralight back and seat upholstery
  • Stabiliser bar
  • Divided footplates, one-piece footboard or elevating largest
  • Spoke protectors

  *please ask us for a full list of options

• Dimensions & Specifications

  • Seat width: 320 / 340 / 360 / 380 / 400 / 420 / 440 / 460 / 480 / 500 / 520 mm – 12 / 13 / 14 / 15 / 16 /             16.5 / 17 / 18 / 19 / 19.5 / 20 inches
  • Seat depth: 360 / 380 / 400 / 420 / 440 / 460 / 480 / 500 / 520 / 540 mm – 14 / 15 / 16 / 16.5 / 17 / 18 / 19      / 19.5 / 20 / 21 inches
  • Seat height (front): 380 – 540 mm in 10 mm increments / 15 – 21 inches in 0.4 inches increments
  • Seat height (rear): 360 – 510 mm in 10 mm increments / 14 – 20 inches in 0.4 inches increments
  • Backrest height: 250 – 500 mm in 25 mm increments / 10 – 19.5 inches in 0.9 inches increments
  • Backrest angle (fixed): 0 / -5 / -10 / 15°
  • Backrest angle (adjustable): -15 to +9° in 6° increments
  • Camber: 0 / 2 / 3 / 4°
  • SWL: 100 / 140 kg  – 16 / 22 stone
  • Weight: From 8.7 kg

  Warranty: 2 years

  Crash Tested: Yes
