Ki Mobility Catalyst 5 Folding Active Wheelchair

Product Information

• Description

  A flagship product, the KI Mobility Catalyst 5 brings innovative new features to lightweight folding wheelchairs, raising the bar in performance and functionality.

  Constructed from ultralightweight aircraft-grade aluminium, the KI Mobility Catalyst 5 wheelchair is durable as well as sleek, and with a vast range of options, can be configured to make your daily life easier, whatever it may bring.

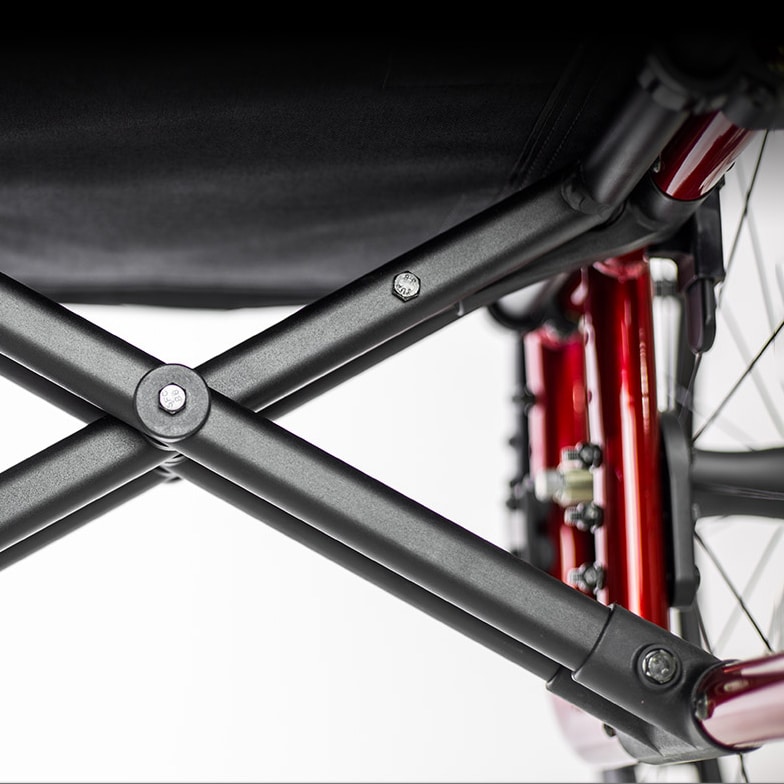

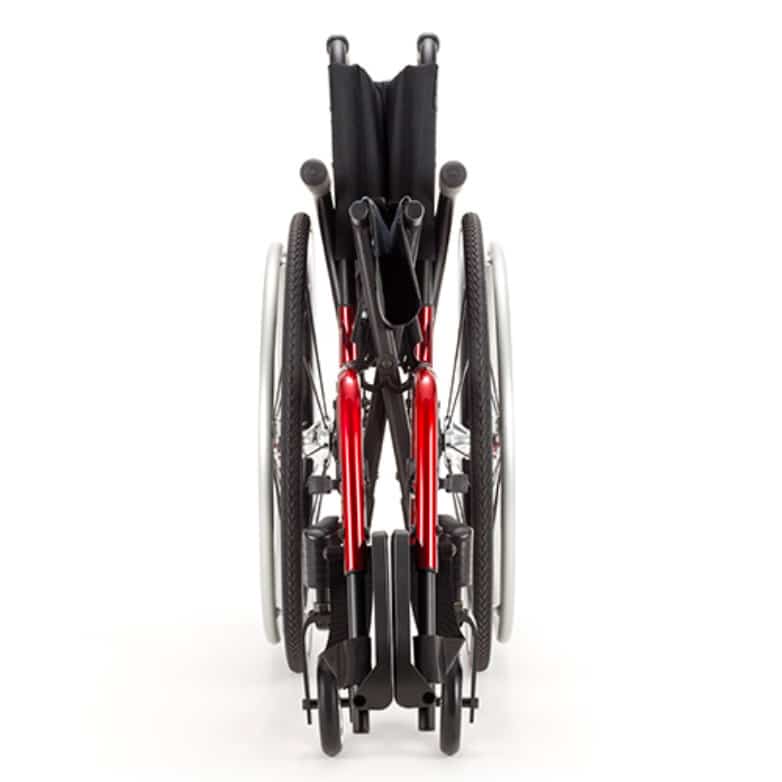

  The smooth folding action of the patented Power X-Hinge allows the Catalyst 5 to be easily folded up to a compact size for travel or storage, but maintains a solid, rigid ride. The unique dual interlocking frame transfers the load from the cross-brace onto the vertical side frames, which can support far greater loads. This keeps the cross-brace lightweight and ensures that, no matter how much you use your Catalyst 5, the frame remains as solid as when you first got it.

• Features & Benefits

  • Achieve seat-to-floor heights in 0.5 inch increments and adjust the centre of gravity over a 3 inch range. Change front and rear seat heights, backrest height, footrest length and angle, and much more.  With completely customisable sizing, the Catalyst 5 can be configured to give people of all sizes with a perfect fit.
  • Light is great but lighter AND stronger is better. Catalyst 5 has a transport weight from just 5.8 and a standard weight of 10.4 kg.  Did we mention it has a 300 lb. standard weight capacity? That makes Catalyst 5 the lightest AND strongest folding wheelchair in the K0005 category.

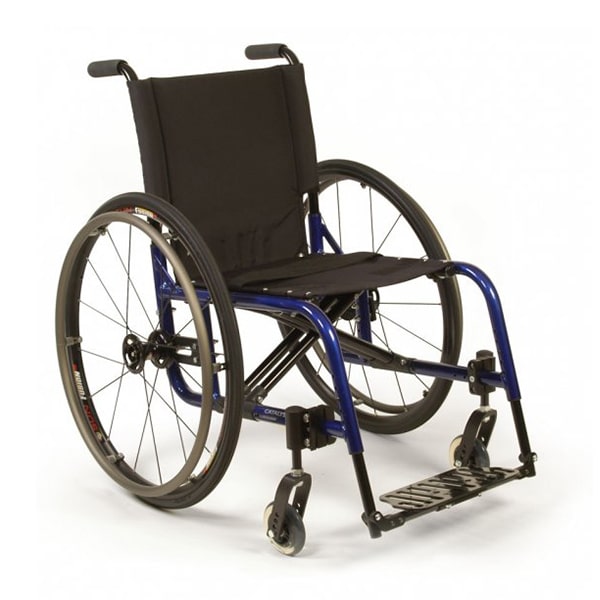

  • The front-frame is available as both a fixed front, which offers better performance and saves weight, or with swing-away legrests that make transfers easier. The lightweight patented hangers now offer multiple hanger release options to further optimize chair setup for you or your caregiver. Plus, it’s the ONLY hanger with a lifetime warranty!
  • Maxx Performance is Ki Mobility’s new spoke wheel that offers performance and style without a high price tag. It features eighteen radial spokes and a high flange hub that result in increased rigidity for a more responsive, better performing wheel. The heightened level of responsiveness combined with a lightweight design give the rider the most from every push. Constructed with a 6061 series aluminium rim and straight steel spokes with a durable black satin finish for a look and feel that is anything but standard.
  • Customise your seating with Ki’s Axiom range of cushions and rigid backrests for tailored comfort, support and pressure relief.
  • Crash tested in accordance with ISO 7176-19, so you can use it as a transport seat in your vehicle.

• Options*

  • Fixed or swing away frame
  • 60°, 70°, 80° or 90° frame angle

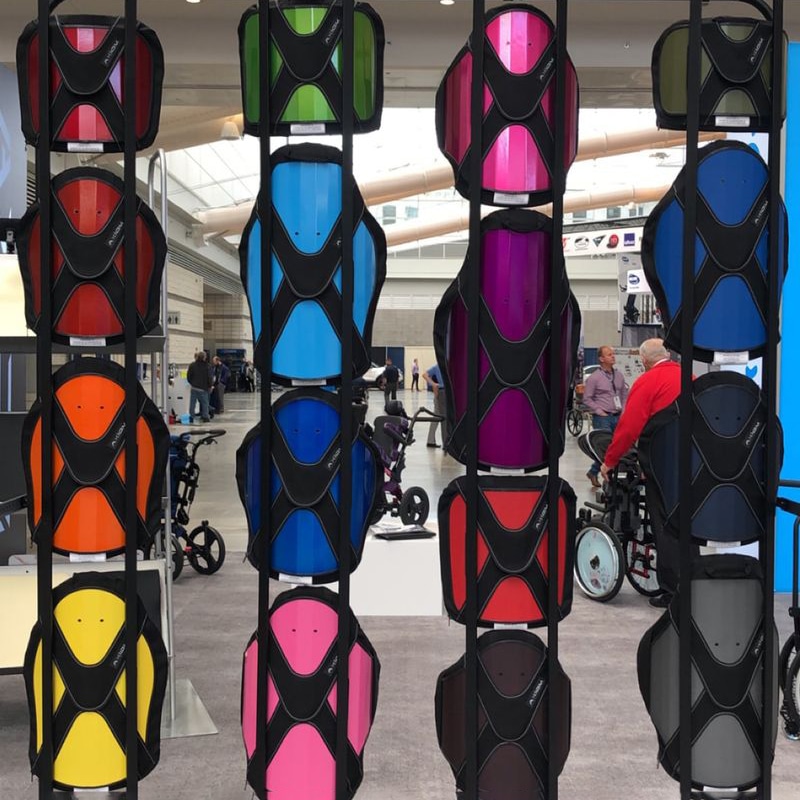

  • 6 backrest styles including half-folding and reclining
  • 3 push handles styles including fold-down
  • 5 footplate styles including one piece flip-up footboard
  • 9 front castor styles
  • 5 brake styles
  • 6 rear wheel styles including Spinergy and Mag wheels
  • 11 handrim styles
  • 6 armrest styles including flip-up and swing-away options
  • 4 sideguard styles including carbon fibre
  • Performance castor housing
  • Carbon forks
  • One arm drive
  • Tension adjustable seat upholstery
  • Anti-tippers
  • Positioning belts
  • Under seat pouch
  • Spoke guards
  • Frame protectors
  • Crutch holder
  • Hydrographics
  • Colour anodising package
  • 19 standard frame colours

  *Please ask us for a full list of options

• Dimensions & Specifications

  • Transport Weight: From 5.8 kg / 12.8 lb
  • Standard Weight: From 10.43 kg / 23 lb
  • Seat Width: 360 – 560 mm / 14 – 22 inches
  • Seat Depth: 360 – 510 mm / 14 – 20 inches
  • Front Seat Height: 340 – 530 mm / 13.5 – 21 inches
  • Rear Seat Height: 290 – 500 mm / 11 – 20 inches
  • Camber: 0° / 2° / 4°
  • Weight Capacity: 136 kg / 21 stone
  • Heavy Duty Weight Capacity: 158 kg / 25 stone
  • Top Frame Tubing Size: 25 mm / 1 inches
  • Bottom Frame Tubing Size: 28 mm / 1.125 inches

  Warranty: 2 years

  Crash Tested: Yes
